Components And Components Location: Components

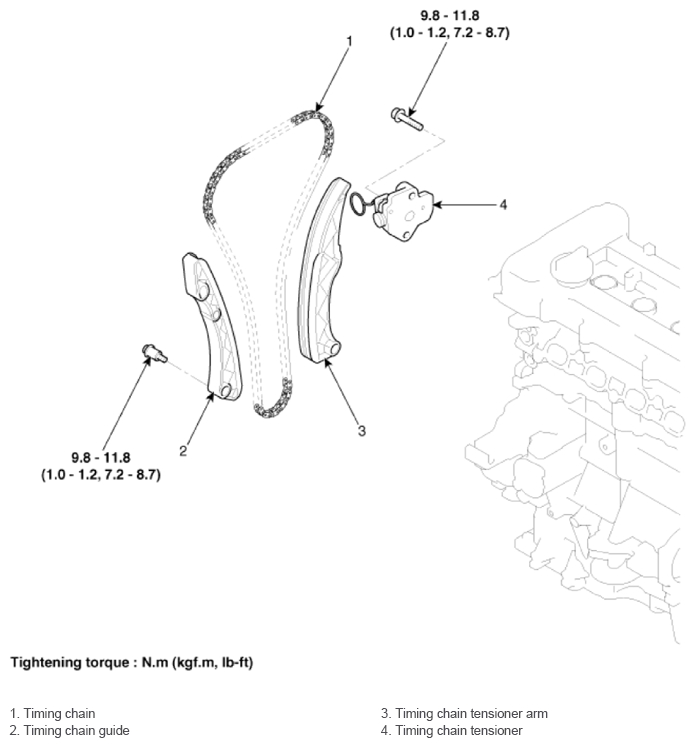

Fig 1: Timing Chain Components Location With Torque Specification

G13562436

Courtesy of HYUNDAI MOTOR AMERICA
