Repair Procedures: Inspection

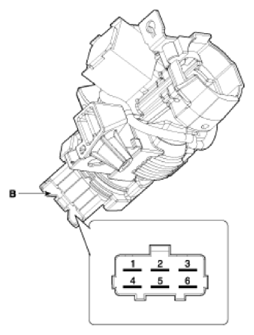

  1. Disconnect the ignition switch connector (A) and key warning switch connector (B) from under the steering column.
    G13565325Courtesy of HYUNDAI MOTOR AMERICA
    G13565326Courtesy of HYUNDAI MOTOR AMERICA

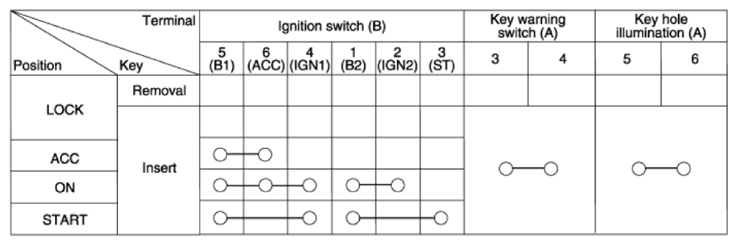

  2. Check for continuity between the terminals.
  3. If continuity is not specified, replace the switch.
G13565327Courtesy of HYUNDAI MOTOR AMERICA
