Neutralization Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.
  2. After IG ON, select the "Neutralization Mode".

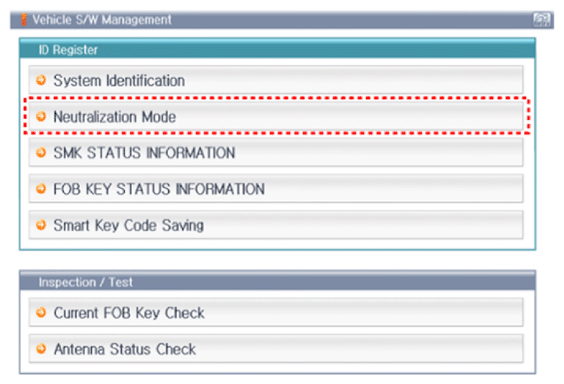

G13564735Courtesy of HYUNDAI MOTOR AMERICA

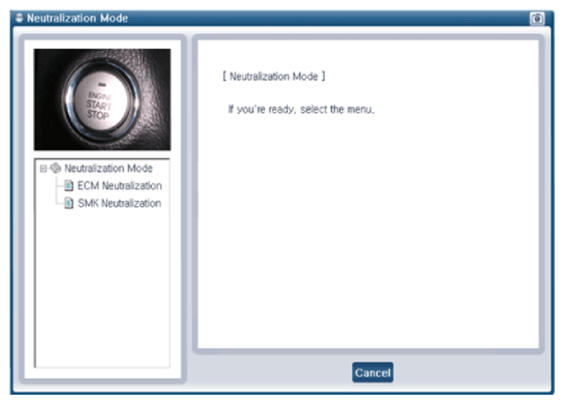

G13564736Courtesy of HYUNDAI MOTOR AMERICA

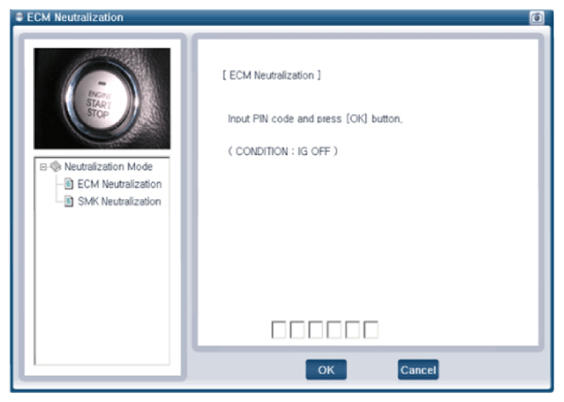

G13564737Courtesy of HYUNDAI MOTOR AMERICA

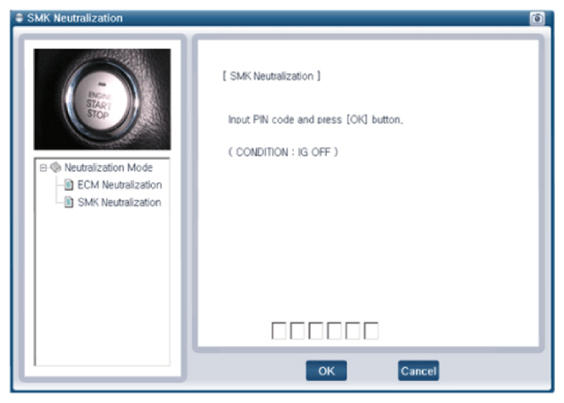

G13564738Courtesy of HYUNDAI MOTOR AMERICA
