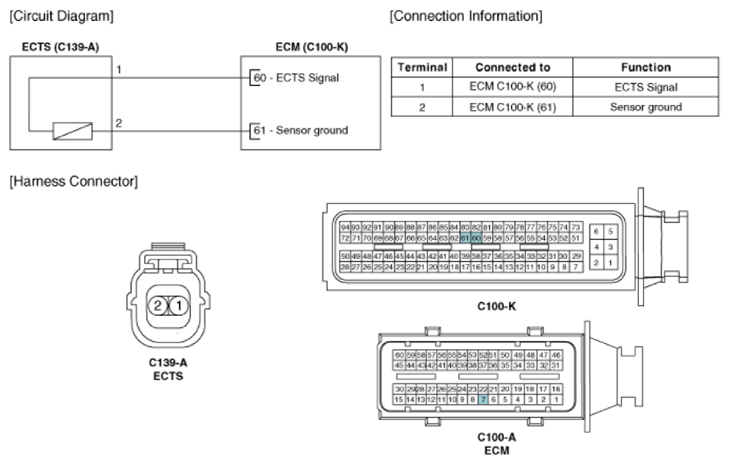

Home >> Hyundai >> 2021 >> Ioniq Hybrid Limited >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System (HEV) >> Engine Coolant Temperature Sensor (ECTS) >> Schematic Diagrams >> Circuit Diagram >> Water Temperature Control Assembly
