Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the battery negative (-) terminal.
  2. Remove the canister assembly.

    (Refer to Emission Control System - "CANISTER ")

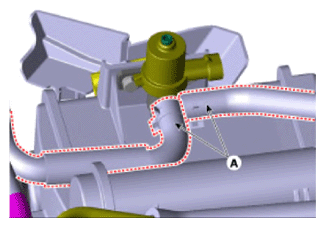

  3. Disconnect the vapor hose (A).
    G13843309Courtesy of HYUNDAI MOTOR AMERICA

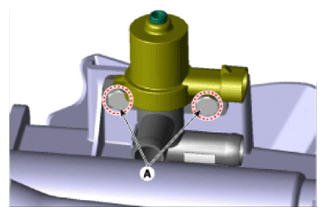

  4. Remove the installation bolt (A), and then remove the canister close valve.
    G13843310Courtesy of HYUNDAI MOTOR AMERICA
    G13843311Courtesy of HYUNDAI MOTOR AMERICA
