CVVT Oil Control Solenoid (Intake)

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

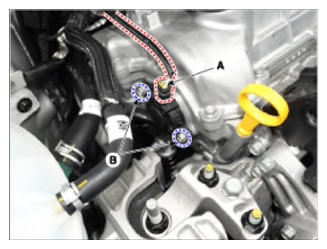

  2. Disconnect the CVVT oil control solenoid (A).
  3. Remove the installation bolt (B), and then remove the CVVT oil control solenoid from the engine.
G13843292Courtesy of HYUNDAI MOTOR AMERICA
