Home >> Hyundai >> 2021 >> Elantra Limited >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> IVT Control System - 2.0L (Except HEV) >> Shift Cable >> Components & Components Location >> Components

Components & Components Location: Components

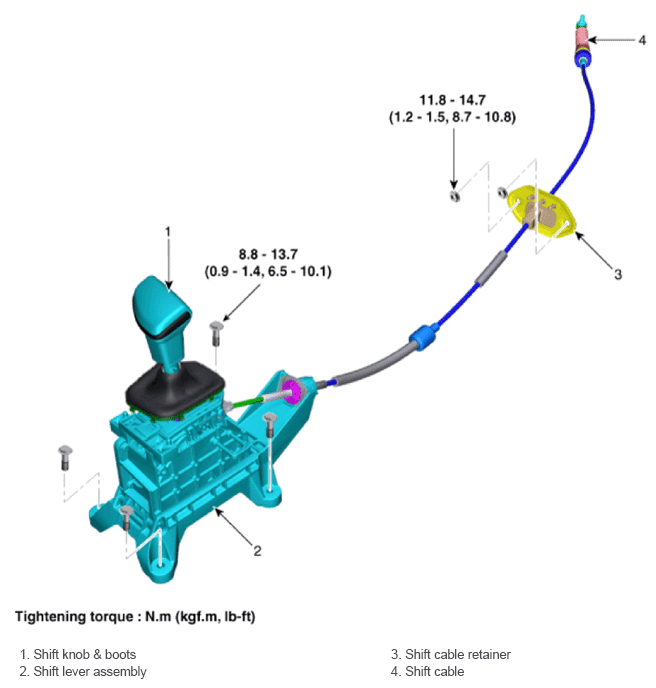

Fig 1: Shift Cable Components Location With Torque Specification

G14607825

Courtesy of HYUNDAI MOTOR AMERICA
