Component Location

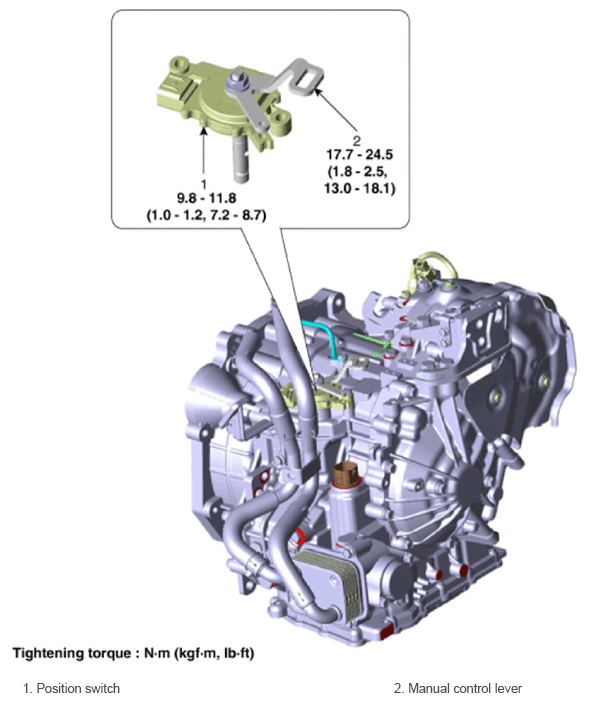

Fig 1: Position Switch Components Location With Torque Specification
G14607808Courtesy of HYUNDAI MOTOR AMERICA
