Repair Procedures: Removal

  1. Turn the ignition switch OFF, and then disconnect the battery nagative (-) terminal.
  2. Lift the vehicle.
  3. Disconnect the canister close valve connector (A).
    G14607650Courtesy of HYUNDAI MOTOR AMERICA

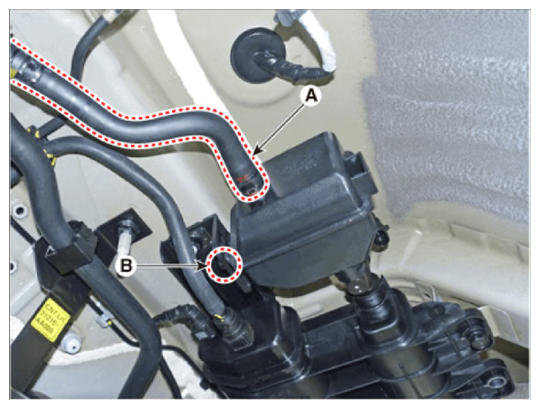

  4. Disconnect the vent hose (A).
  5. Loosen the fuel tank air filter mounting bolt (B).
    G14607651Courtesy of HYUNDAI MOTOR AMERICA

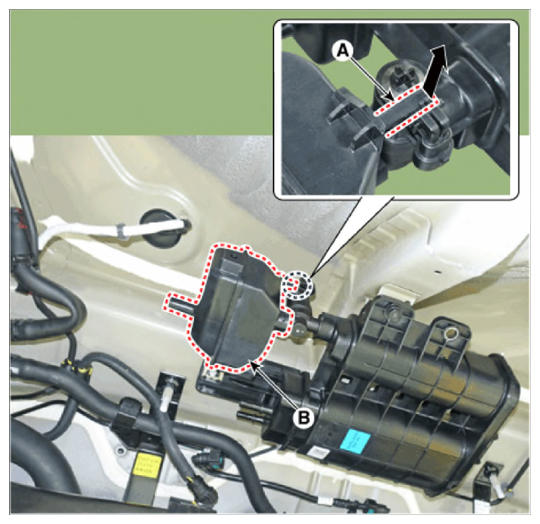

  6. Lifting the fixed part (A) and then rotating fuel tank air filter (B) 30 degrees in the direction of the clockwise.
    G14607652Courtesy of HYUNDAI MOTOR AMERICA

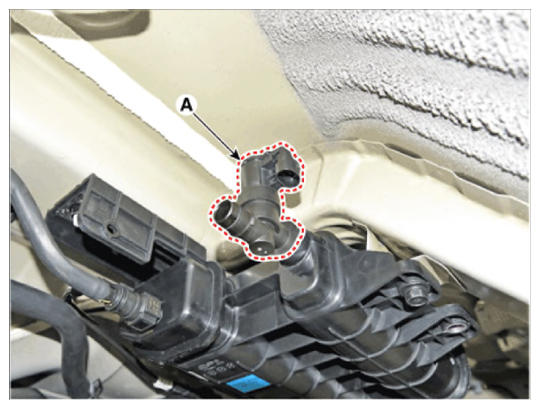

  7. Remove the canister close valve (A) by rotating it 30 degrees.
    G14607653Courtesy of HYUNDAI MOTOR AMERICA
