Home >> Hyundai >> 2021 >> Elantra Hybrid Limited >> Repair and Diagnosis >> Engine Performance >> Ignition System >> Ignition System (HEV) >> Spark Plug >> Repair Procedures >> Cleaning >> [2st Method]

[2st Method]

NOTE:
  • The 2nd method should be performed only if the 1st method fails (the misfire-related codes recur).

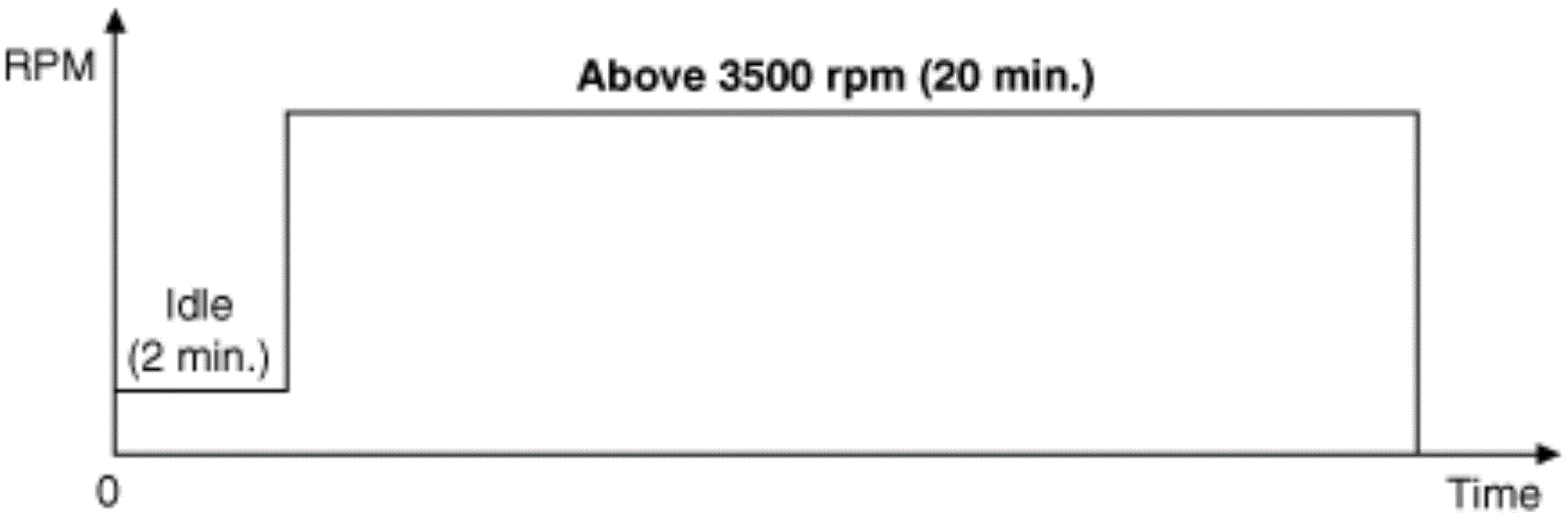

  1. Start the engine and keep the engine running at idle for 2 minutes.
  2. Drive the vehicle for over 20 minutes, keeping the engine speed above 3500 rpm.
NOTE:
  • If equipped with manual transaxle, shift the gear properly to keep the engine speed above 3500 rpm.
G16077630Courtesy of HYUNDAI MOTOR AMERICA
