Repair Procedures: Removal

  1. Turn the ignition switch OFF, and then disconnect the battery negative (-) terminal.
  2. Lift the vehicle.

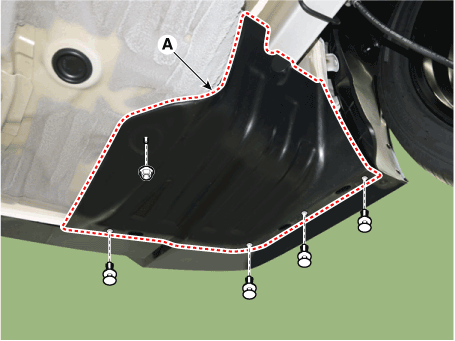

  3. Loosen the mounting nuts and clips, remove the rear bumper under cover (A).
    G16077886Courtesy of HYUNDAI MOTOR AMERICA

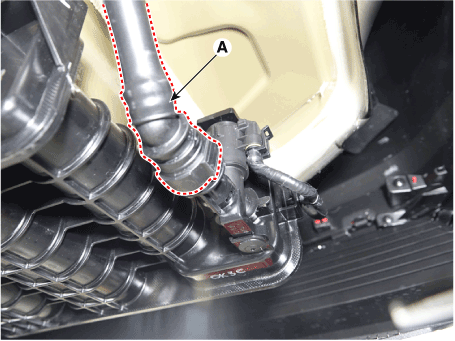

  4. Disconnect the vent hose quick-connector (A).
    G16077887Courtesy of HYUNDAI MOTOR AMERICA

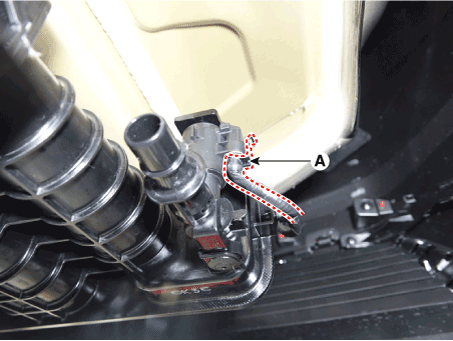

  5. Disconnect the Canister Close Valve (CCV) connector (A).
    G16077888Courtesy of HYUNDAI MOTOR AMERICA

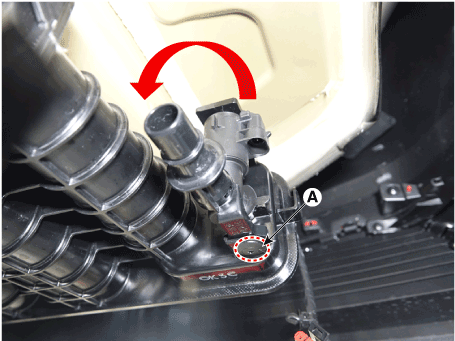

  6. Remove the fastener (A).
  7. Lifting the fixed part and then rotating canister close valve 30 degrees in the direction of the clockwise.
G16077889Courtesy of HYUNDAI MOTOR AMERICA
