[Bank 1/Intake]
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the air cleaner assembly
(Refer to Engine Mechanical System - "AIR CLEANER ")

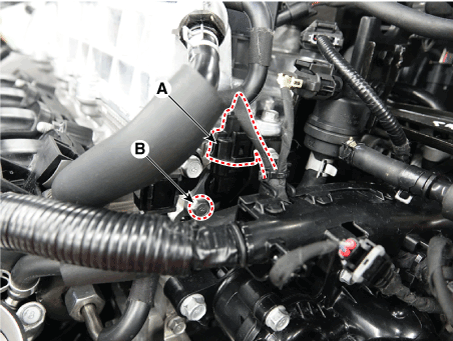

- Disconnect the camshaft position sensor connector (A).
- Remove the installation bolt (B), and then remove the sensor.
Tightening torque:
9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb-ft)
