Repair Procedures: Removal

Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to Body Electrical System - "BATTERY , and BATTERY TRAY ")
Drain the coolant.
(Refer to Engine Mechanical System - "COOLANT ")

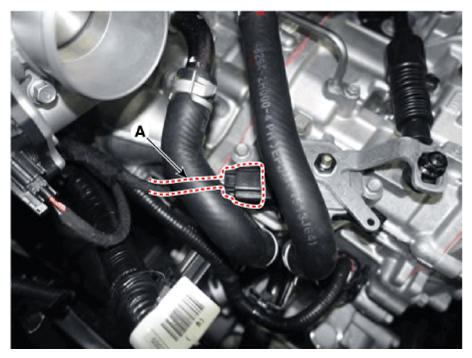

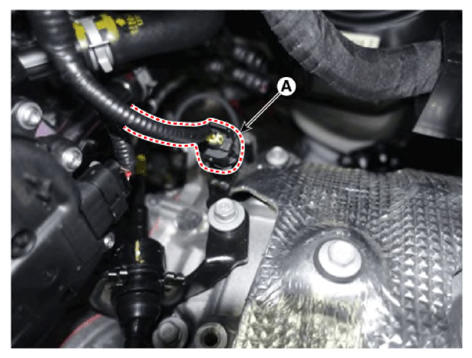

Disconnect the position switch connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the driven pulley speed sensor connector (B).

Courtesy of HYUNDAI MOTOR AMERICA

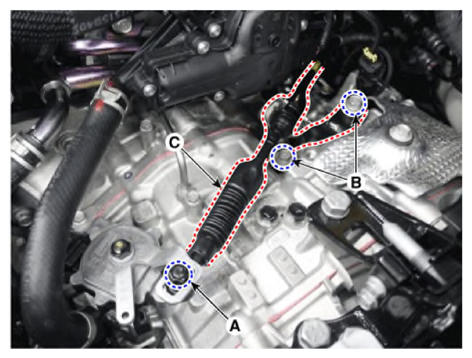

Loosen the nut (A), bolts (B) and then removing the shift cable (C).
Tightening torque:
1. 9.8 - 13.7 N.m (1.0 - 1.4 kgf.m, 7.2 - 10.1 lb-ft)
2. 14.7 - 21.6 N.m (1.5 - 2.2 kgf.m, 10.9 - 15.9 lb-ft)
Courtesy of HYUNDAI MOTOR AMERICA

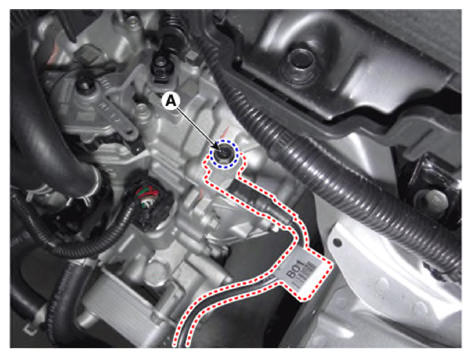

Remove the ground line after removing the bolt (A).
Tightening torque:

26.5 - 32.4 N.m (2.7 - 3.3 kgf.m, 19.5 - 23.9 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

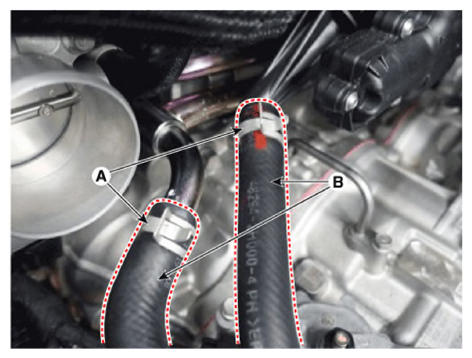

Separate the hose (B) after removing the Intelligent Variable Transmission Fluid (IVTF) cooler hose clamp (A).

Courtesy of HYUNDAI MOTOR AMERICA

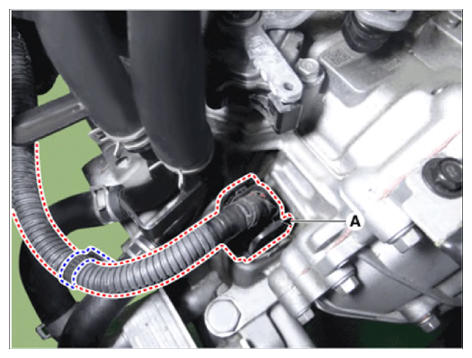

Disconnect the main connector (A).

NOTE:

After detaching the main connector, wrap a plastic bag around the connector to prevent coolant from getting into it.

G14077294

Courtesy of HYUNDAI MOTOR AMERICA

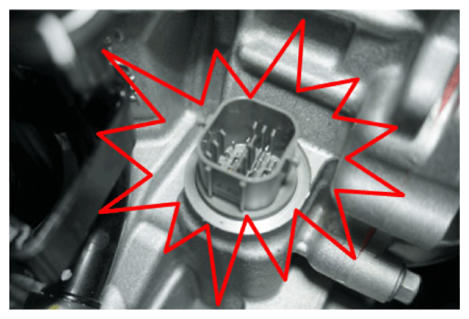

If coolant gets into the connector, corrosion may occur inside the connector, thus causing an open/short circuit. In this case, trouble codes and shift failure may also occur.

G14077295

Courtesy of HYUNDAI MOTOR AMERICA

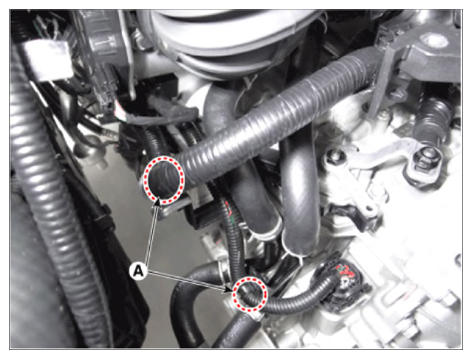

Separate the fixing clip (A) of wiring.

Courtesy of HYUNDAI MOTOR AMERICA

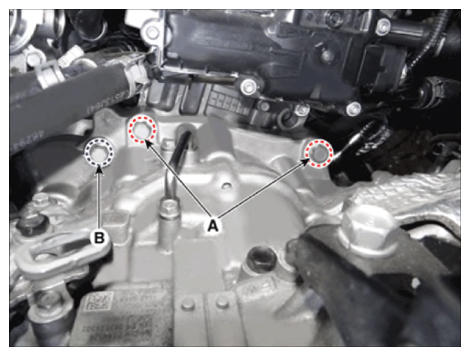

Remove the transmission upper mounting bolts (A) and the starter mounting bolt (B).
Tightening torque:
1. 42.2 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb-ft)
2. 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)
Courtesy of HYUNDAI MOTOR AMERICA
Assemble the engine support fixture on the engine room.
(Refer to SPECIAL SERVICE TOOLS - "Engine support fixture assembly drawing")

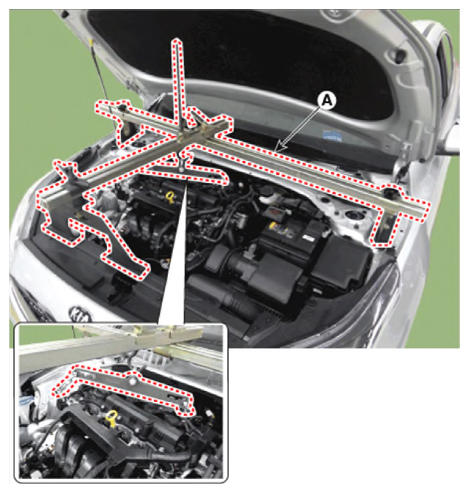

Using the engine support fixture (A), hold the engine and transmission assembly safely.

Courtesy of HYUNDAI MOTOR AMERICA

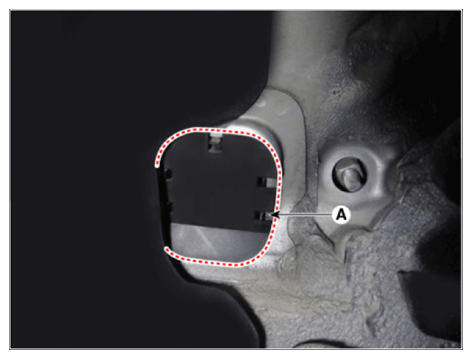

Remove the dust cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

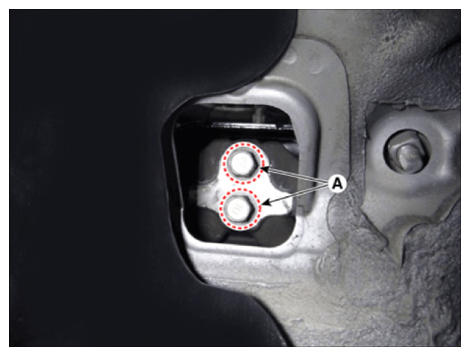

Remove the Intelligent Variable Transmission (IVT) support bracket mounting bolts (A).
Tightening torque:

98.1 - 117.7 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

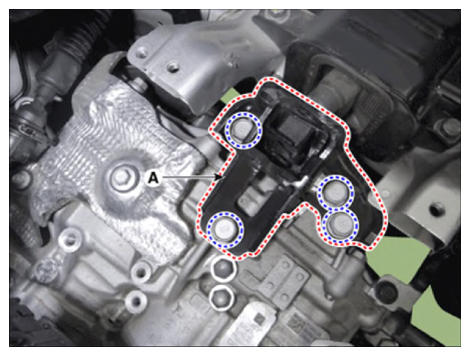

Remove the IVT support bracket (A).
Tightening torque:

58.8 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.9 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Remove the drive shaft assembly.
(Refer to Driveshaft and Axle - "FRONT DRIVESHAFT ")

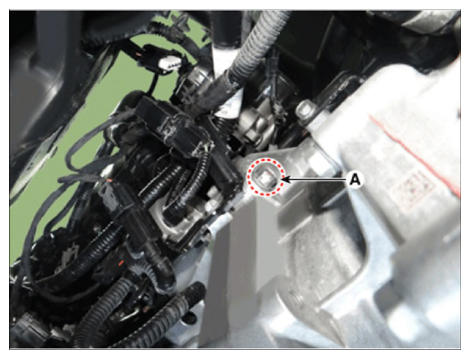

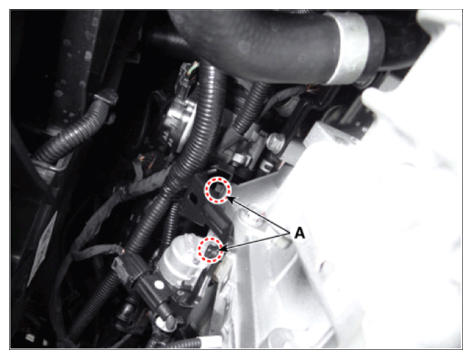

Remove the wiring mounting bolt (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the exhaust manifold stay (A).
Tightening torque:

39.2 - 49.0 N.m (4.0 - 5.0 kgf.m, 28.9 - 36.2 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

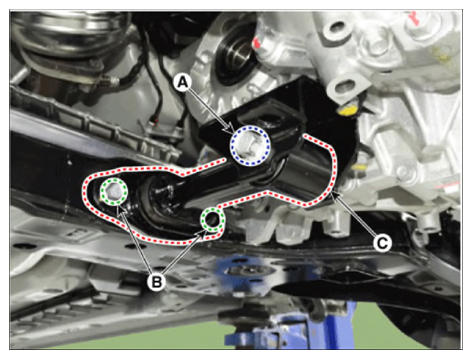

Remove the roll rod bracket (C) after removing the bolt (A) and (B).
Tightening torque:

Bolt (A): 107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

Bolt (B): 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

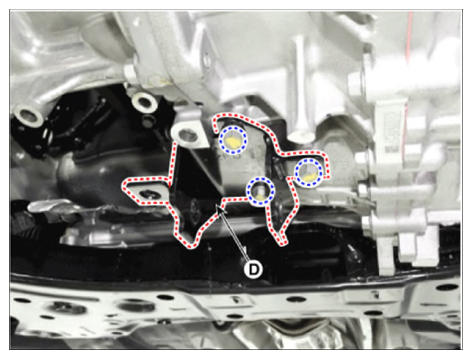

Remove the roll rod support bracket (D).
Tightening torque:

49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

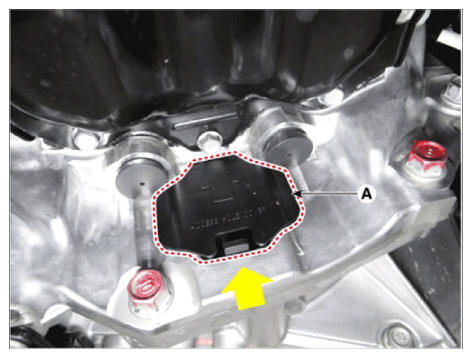

Remove the cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:

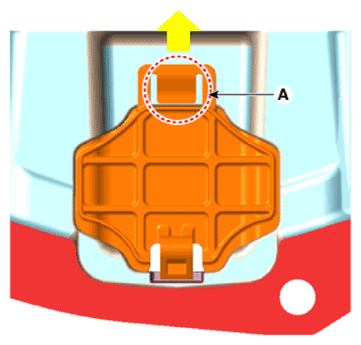

- When installing the cover, attach the fixing hook (A) so that it is inserted inside.
Courtesy of HYUNDAI MOTOR AMERICA

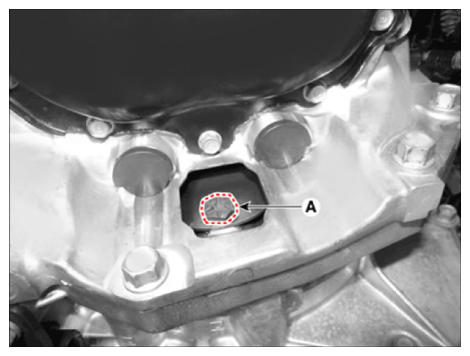

Remove the torque converter mounting bolts (A) by rotating the crankshaft.
Tightening torque:

45.1 - 52.0 N.m (4.6 - 5.3 kgf.m, 33.3 - 38.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Support the transmission safely on a jack.

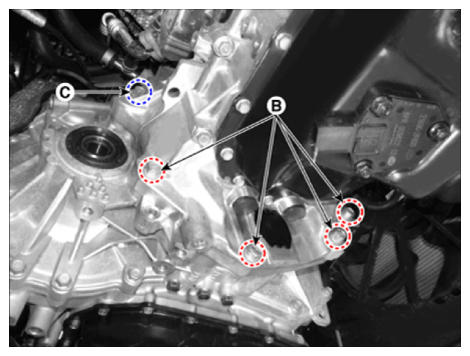

Remove the starter mounting bolt (A) and transmission lower mounting bolts (B, C).
Tightening torque:
1. 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)
2. 42.2 - 48.1 N.m (4.3 - 4.9 kgf.m, 31.1 - 35.4 lb-ft)
3. 42.2 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb-ft)
Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
After separating the transmission from the engine, remove the transmission by lowering the jack slowly.

NOTE:

Be careful not to damage other nearby systems or parts when removing the transmission assembly.
