IVTF Warmer
>>
Components And Components Location
>>
Components Location
Components Location

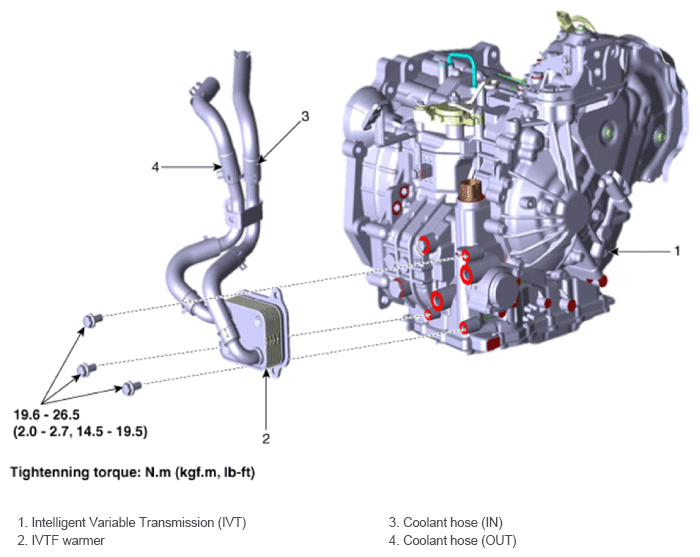

Fig 1: Transmission (IVTF) Warmer Components Location With Torque Specification
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
