Repair Procedures: Adjustment

WARNING: This page is about a different variant/trim than selected.

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")

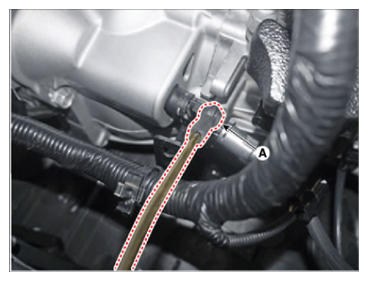

Open the concentric slave cylinder air bleed cap (A).

Courtesy of HYUNDAI MOTOR AMERICA

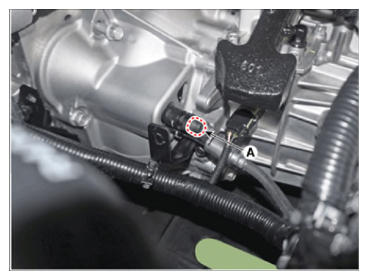

Connect the vinyl hose (A) to the air bleeder plug.

Courtesy of HYUNDAI MOTOR AMERICA

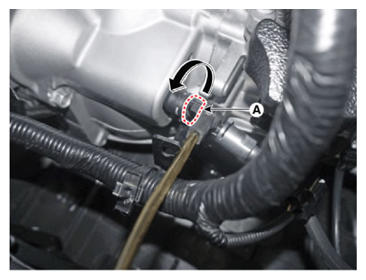

After opening the air bleeder plug (A), press and release the clutch pedal about 10 times.

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

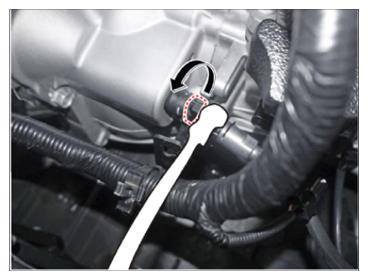

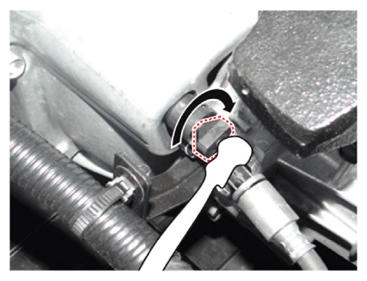

Open (Counter-Clockwise, 90°)	Close (Clockwise, 90°)
Courtesy of HYUNDAI MOTOR AMERICA	Courtesy of HYUNDAI MOTOR AMERICA
