Components Location

WARNING: This page is about a different variant/trim than selected.

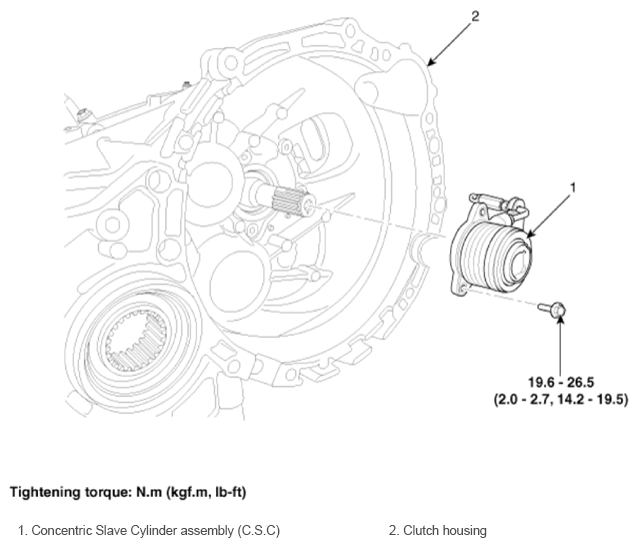

Fig 1: Concentric Slave Cylinder Assembly Components Location With Torque Specification
G14077127Courtesy of HYUNDAI MOTOR AMERICA
