Home >> Hyundai >> 2021 >> Accent SEL >> Repair and Diagnosis >> Engine Mechanical >> Cooling Fan >> Engine Cooling System >> Water Pump >> Components And Components Location >> Components

Components And Components Location: Components

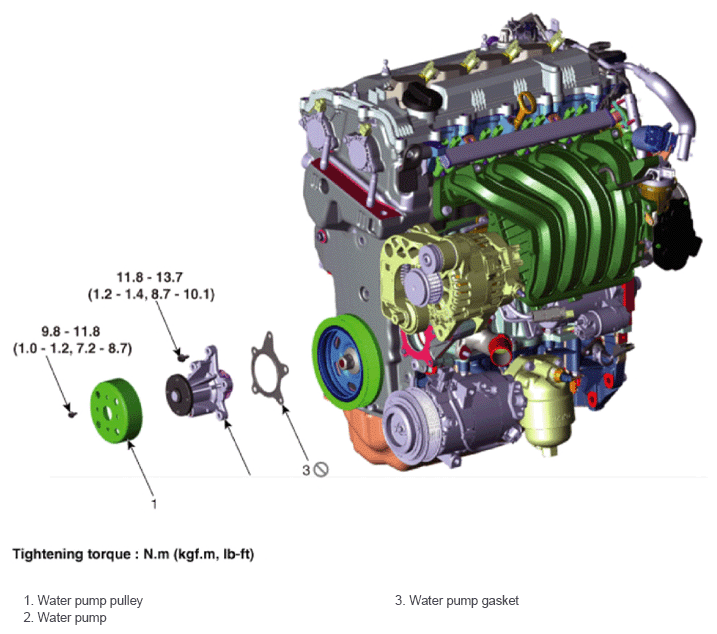

Fig 1: Water Pump Components Location With Torque Specifications

G14076554

Courtesy of HYUNDAI MOTOR AMERICA
