ABS Control

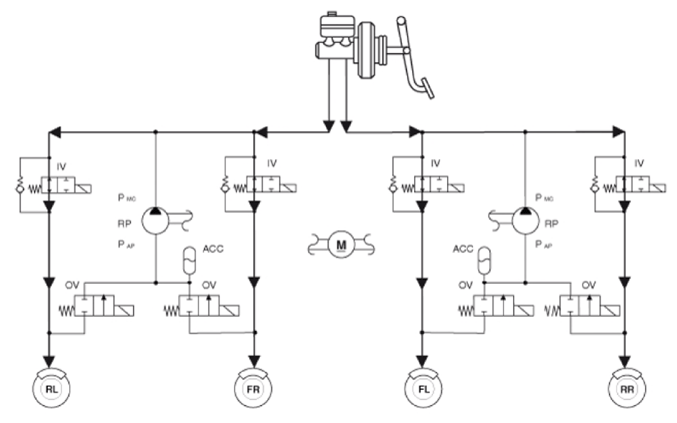

Normal Braking without ABS

	Inlet valve (IV)	Outlet valve (OV)	Return pump
Operation	Open	Close	OFF

G14077978

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

IV: Inlet Valve
OV: Outlet Valve
RL: Rear left wheel
FR: Front right wheel
FL: Front left wheel
RR: Rear right wheel
RP: Return pump

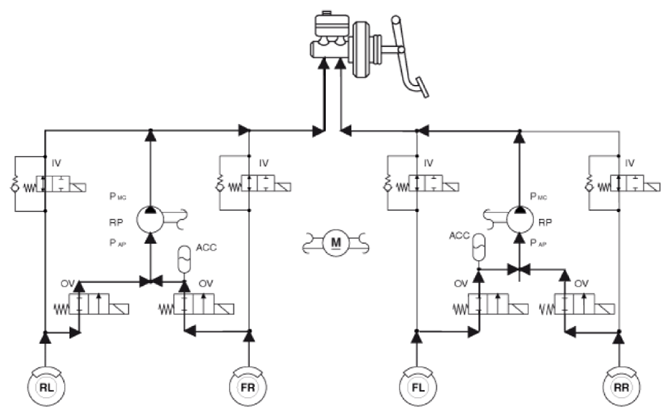

Decrease Mode

	Inlet valve (IV)	Outlet valve (OV)	Return pump
Operation	Close	Open	ON (Motor speed control)

G14077979

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

IV: Inlet Valve
OV: Outlet Valve
RL: Rear left wheel
FR: Front right wheel
FL: Front left wheel
RR: Rear right wheel
RP: Return pump

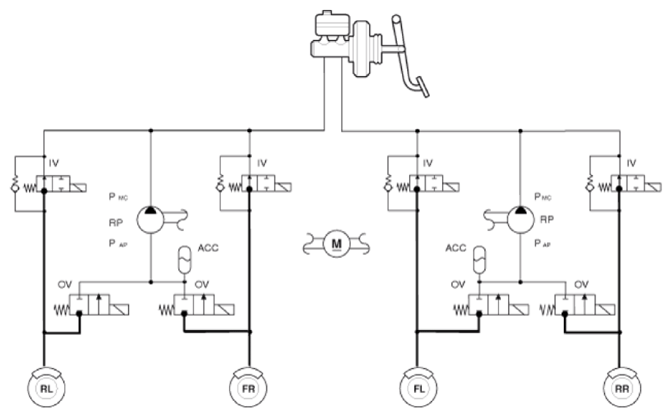

Hold Mode

	Inlet valve (IV)	Outlet valve (OV)	Return pump
Operation	Close	Close	ON (Motor speed control)

G14077980

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

IV: Inlet Valve
OV: Outlet Valve
RL: Rear left wheel
FR: Front right wheel
FL: Front left wheel
RR: Rear right wheel
RP: Return pump

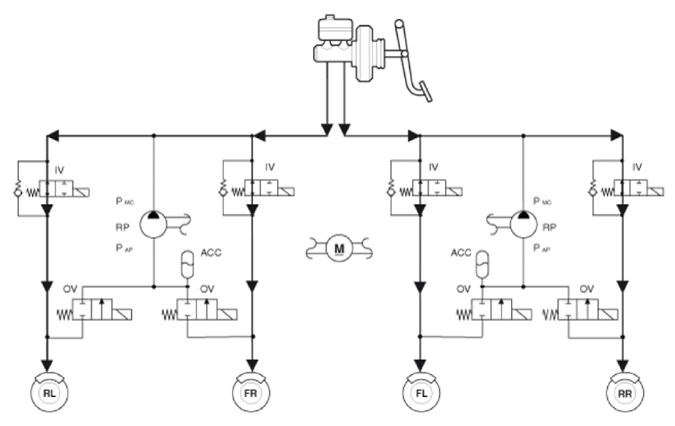

Increase Mode

	Inlet valve (IV)	Outlet valve (OV)	Return pump
Operation	Open	Close	ON (Motor speed control)

G14077981

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

IV: Inlet Valve
OV: Outlet Valve
RL: Rear left wheel
FR: Front right wheel
FL: Front left wheel
RR: Rear right wheel
RP: Return pump
