Repair Procedures: Removal

Turn OFF ignition switch and disconnect the negative (-) battery cable.
Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
Remove the engine control module (ECM).
(Refer to Engine Control System - "ENGINE CONTROL MODULE (ECM) ")
Disconnect the back-up lamp switch connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the control cable bracket and control cable.

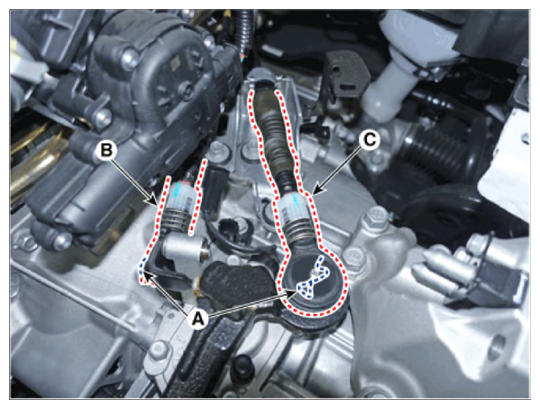

1. Remove the snap pin (A) and then separate the select cable (B) and shift cable (C).

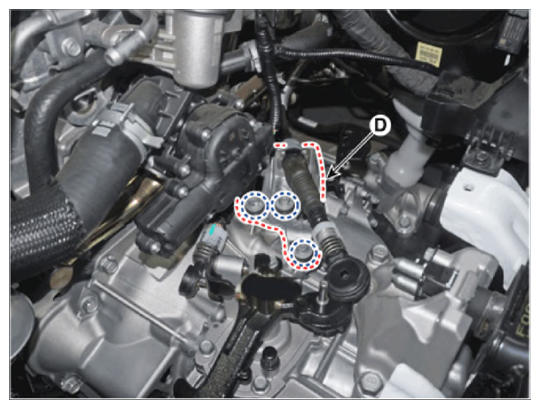

2. Loosen the mounting bolts and then removing the control cable bracket (D).
  Tightening torque:

  14.7 - 21.6 N.m (1.5 - 2.2 kgf.m, 10.8 - 15.9 lb-ft)
Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

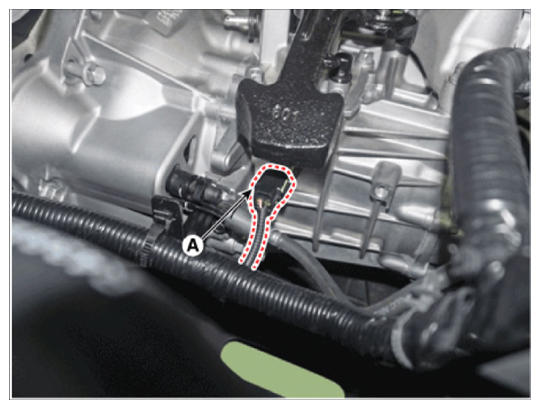

Separate the ground line (A).
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

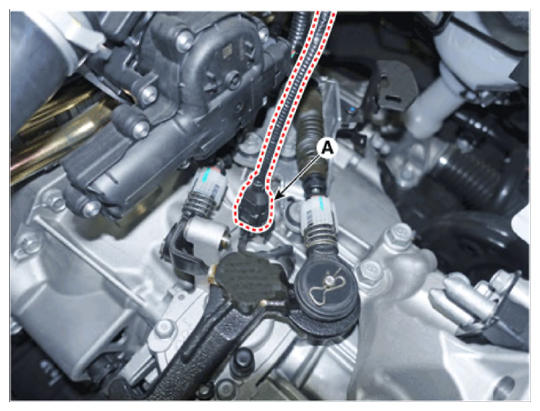

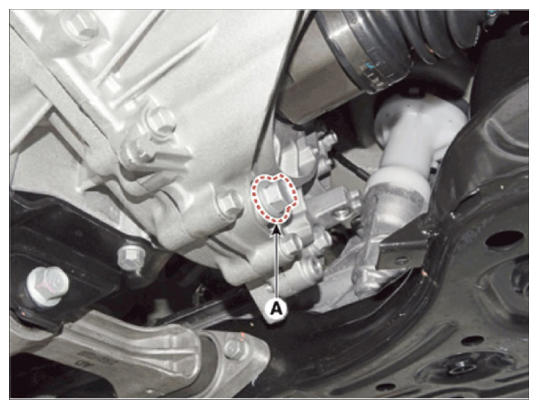

Disconnect the neutral switch connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

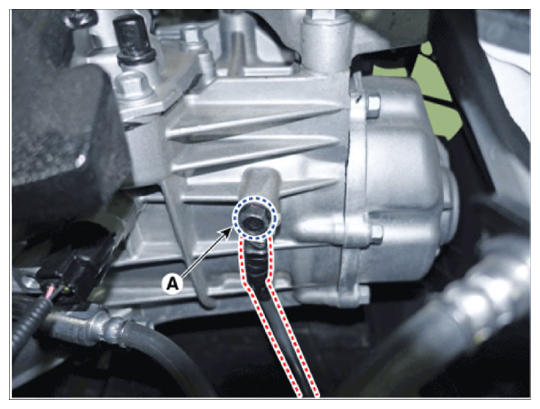

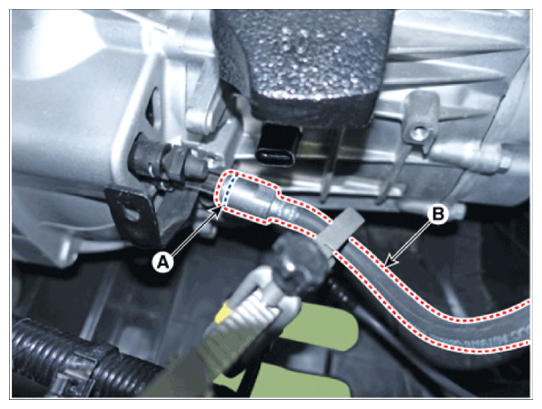

Remove the clip (A) and then separate the concentric slave cylinder (B).

Courtesy of HYUNDAI MOTOR AMERICA

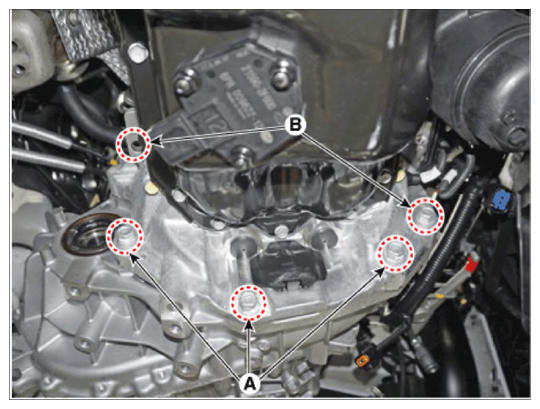

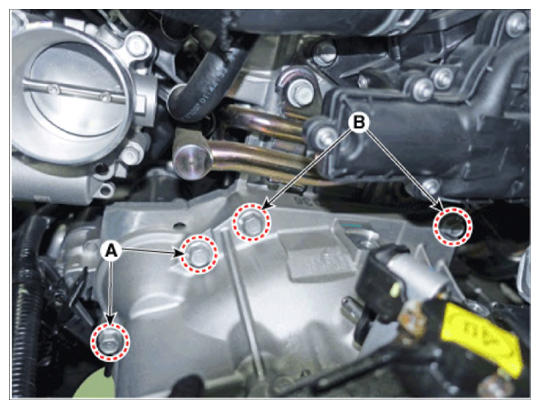

Loosen the starter mounting bolts (A) and the transaxle upper mounting bolts (B).
Tightening torque:
1. 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)
2. 42.2 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb-ft)
Courtesy of HYUNDAI MOTOR AMERICA
Assemble the engine support fixture (beam No.: 09200-38001 or 09200-3N000, supporter No.: 09200-2S000).

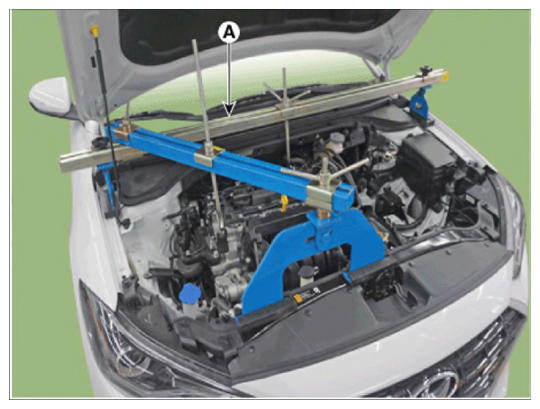

Using the engine support fixture (A), hold the engine and transaxle assembly safely.

Courtesy of HYUNDAI MOTOR AMERICA

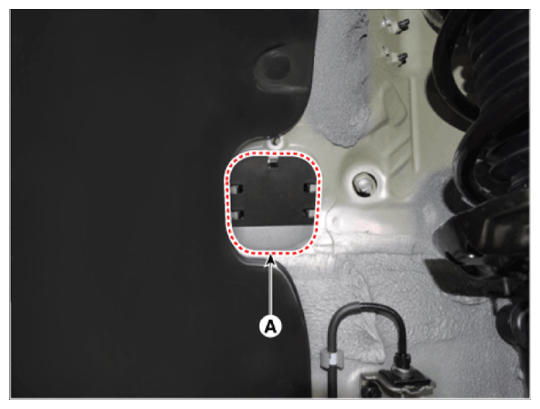

Remove the dust cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

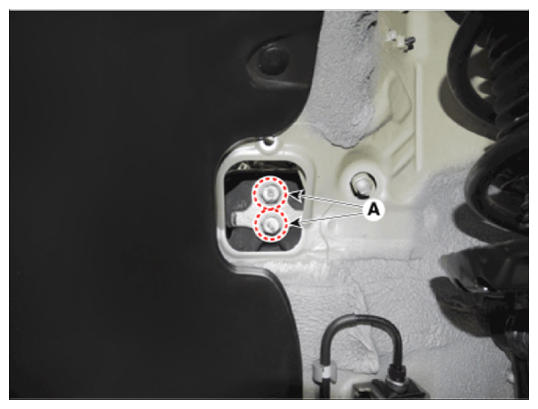

Remove the transaxle support bracket mounting bolts (A).
Tightening torque:

88.3 - 107.9 N.m (9.0 - 11.0 kgf.m, 65.1 - 79.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

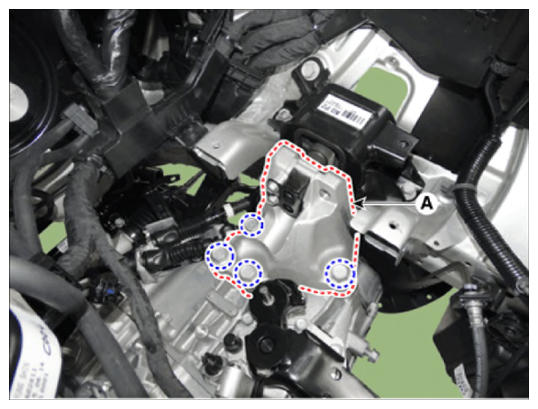

Remove the transaxle support bracket (A).
Tightening torque:

58.9 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the under cover.
(Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")
Loosen the oil drain plug (A), and then drain the fluid.
Tightening torque:

58.9 - 78.5 N.m (6.0 - 8.0 kgf.m, 43.4 - 57.8 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Remove the front drive shaft assembly.
(Refer to Driveshaft and axle - "FRONT DRIVE SHAFT ")

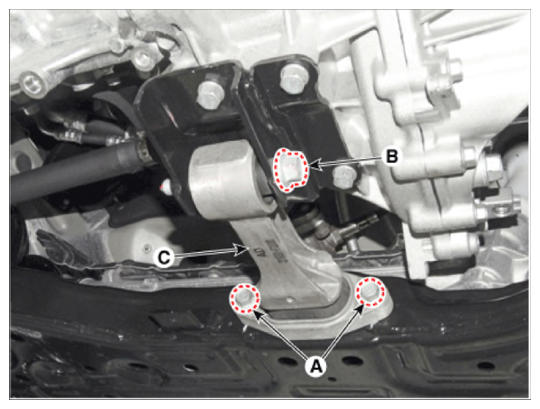

Loosen the roll rod bracket bolts (A), (B) and then removing the roll rod bracket (C).
Tightening torque:
1. 49.0 - 63.7 N.m (5.0 - 6.5 kgf.m, 36.2 - 47.0 lb-ft)
2. 107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.1 lb-ft)
Courtesy of HYUNDAI MOTOR AMERICA

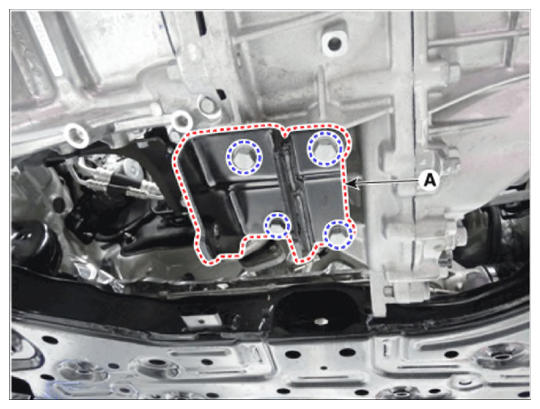

Remove the roll rod support bracket (A).
Tightening torque:

49.0 - 68.6 N.m (5.0 - 7.0 kgf.m, 36.2 - 50.6 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

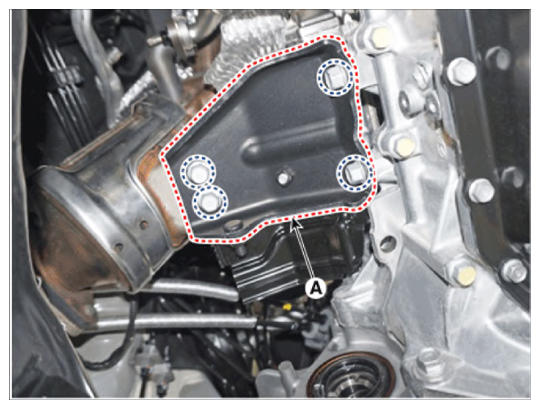

Loosen the bolts and then removing the heat protect assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the lower mounting bolts (A) and (B) of lower part of the transaxle, and the left side cover and remove the transaxle assembly by supporting it with a jack.
Tightening torque:
1. 42.2 - 48.1 N.m (4.3 - 4.9 kgf.m, 31.1 - 35.4 lb-ft)
2. 42.2 - 53.9 N.m (4.3 - 5.5 kgf.m, 31.1 - 39.8 lb-ft)
CAUTION:
- Be careful not to damage other system or parts near by when removing the engine and transaxle assembly.
Courtesy of HYUNDAI MOTOR AMERICA
