Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.

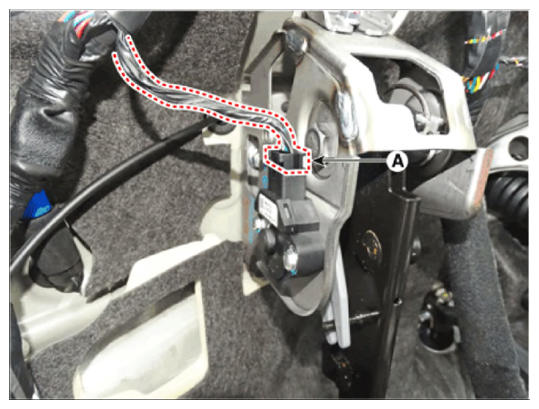

  2. Disconnect the ignition lock & clutch switch connector (A).
    G14077102Courtesy of HYUNDAI MOTOR AMERICA

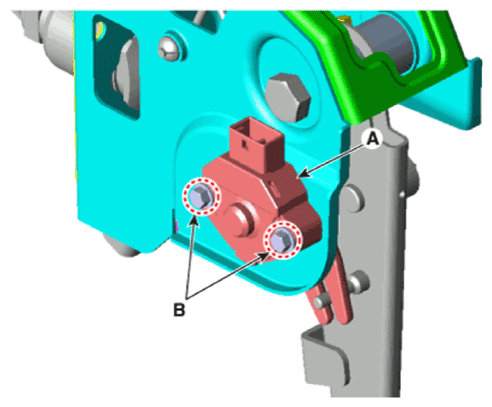

  3. Remove the ignition lock & clutch switch (A) after loosening the bolts (B).
    G14077103Courtesy of HYUNDAI MOTOR AMERICA

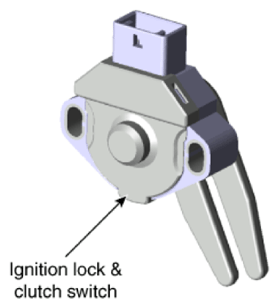

    G14077104Courtesy of HYUNDAI MOTOR AMERICA
