Home >> Hyundai >> 2021 >> Accent SE, Automatic CVT Trans >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Intelligent Variable Transmission (IVT) >> Components And Components Location >> Components

Components And Components Location: Components

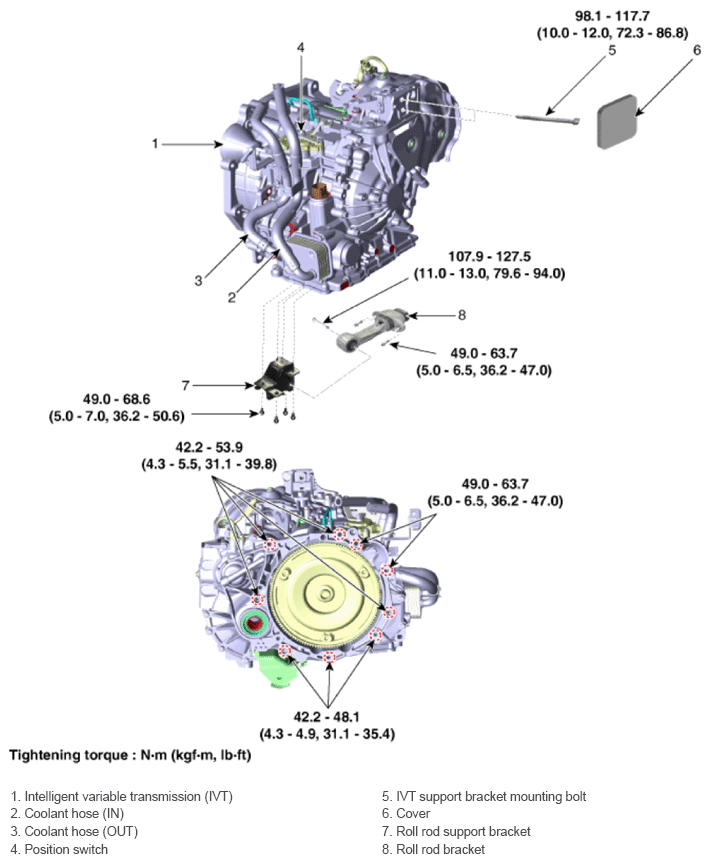

Fig 1: Intelligent Variable Transmission Components Location With Torque Specifications

G14077287

Courtesy of HYUNDAI MOTOR AMERICA
