Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.

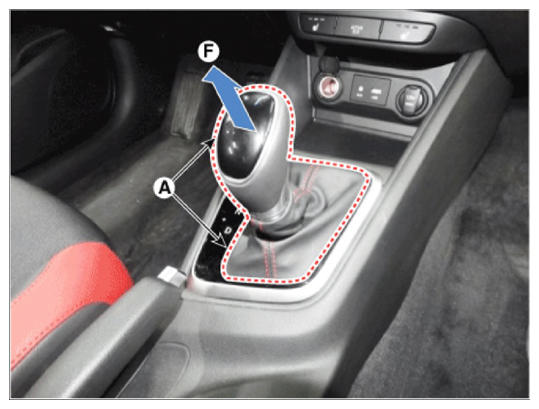

  2. Pull the knob & boots (A) in the direction of "F" and remove the knob & boots (A).
    G14077256Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the floor console.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

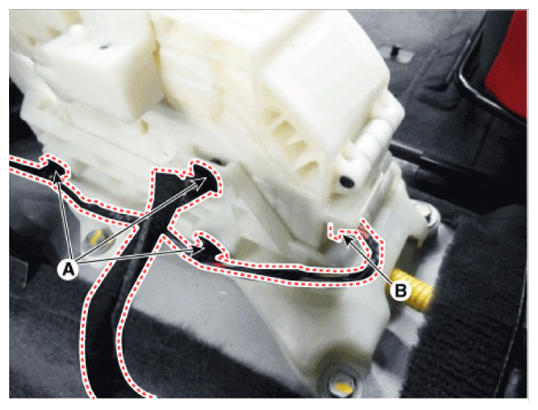

  4. Disconnect the fixing clip (A) of wiring and connector (B) from the shift lever.
    G14077257Courtesy of HYUNDAI MOTOR AMERICA

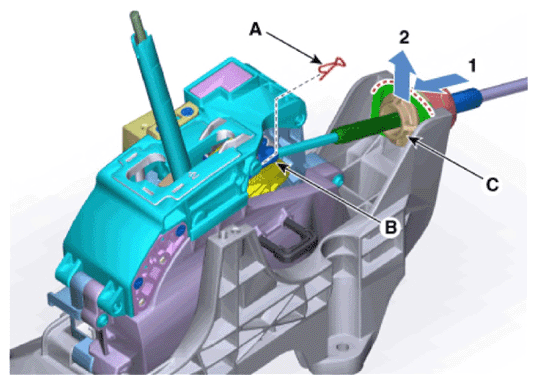

  5. Disconnect the shift cable.
    1. Remove the snap pin (A).
    2. Disconnect the cable eye end (B) from the shift lever.
    3. Disconnect the cable socket (C) from the shift lever.
    G14077258Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:

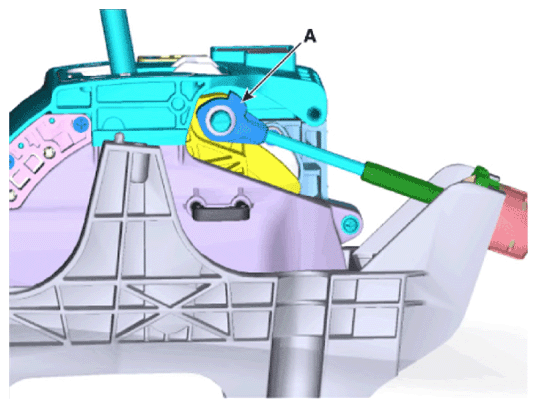

    • Lug (A) must assemble upward.
      G14077259Courtesy of HYUNDAI MOTOR AMERICA

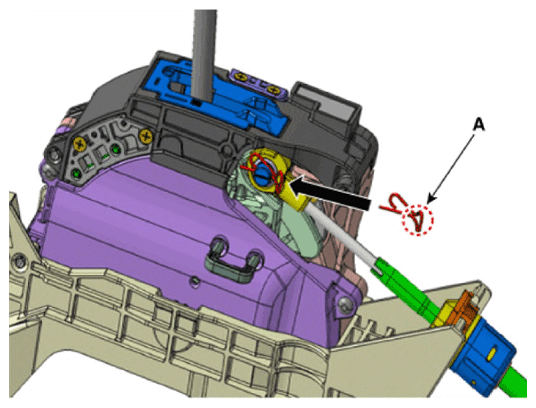

    • Bending area (A) must assemble the front.
    G14077260Courtesy of HYUNDAI MOTOR AMERICA

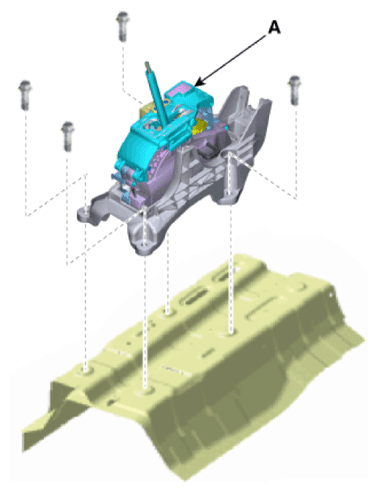

  6. Remove the bolts and then shift lever assembly (A).

    Tightening torque:

    8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

    G14077261Courtesy of HYUNDAI MOTOR AMERICA
