Components and Components Location

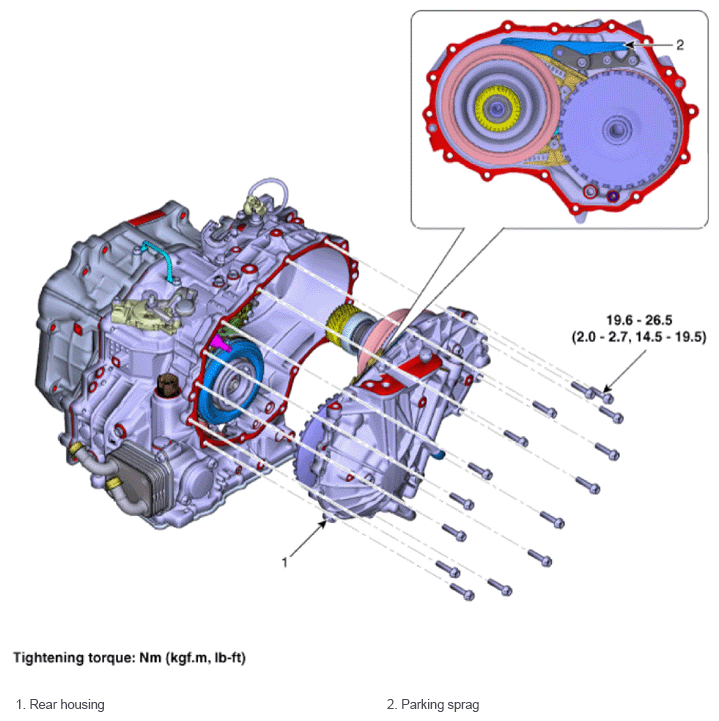

Fig 1: Parking Sprag Components Location With Torque Specification
G14077271Courtesy of HYUNDAI MOTOR AMERICA
