Repair Procedures: Removal

  1. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

  2. Remove the battery and battery tray.

    (Refer to Body Electrical System - "BATTERY ")

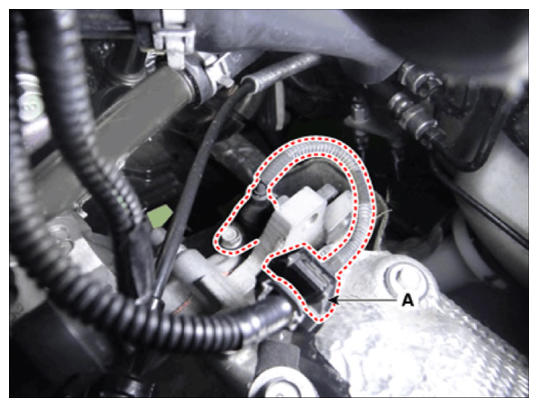

  3. Disconnect the driven pulley speed sensor connector (A).
    G14077239Courtesy of HYUNDAI MOTOR AMERICA

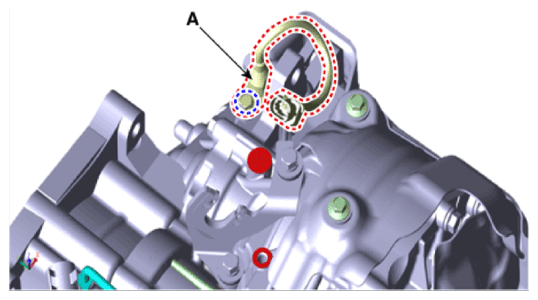

  4. Remove the driven pulley speed sensor (A) after loosening the bolt.

    Tightening torque:

    9.8 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb-ft)

    G14077240Courtesy of HYUNDAI MOTOR AMERICA
