Components And Components Location: Components

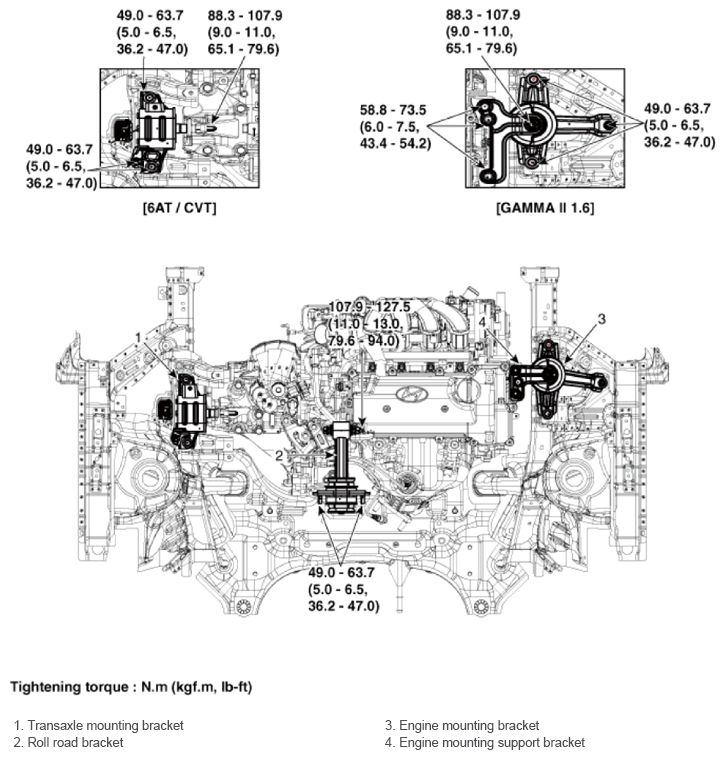

Fig 1: Engine Mounting Components Location With Torque Specifications

G14076238

Courtesy of HYUNDAI MOTOR AMERICA
