Removal And Installation
- Disconnect the battery negative cable and wait for at least three minutes before beginning work.

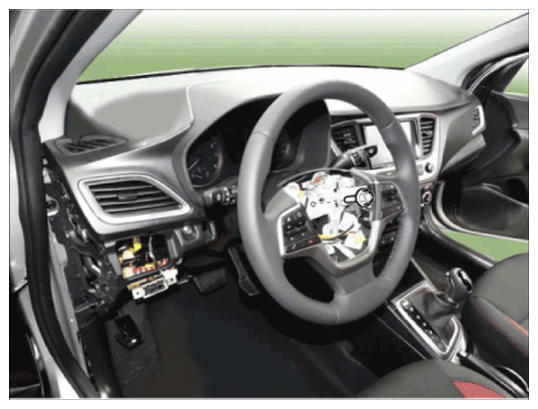

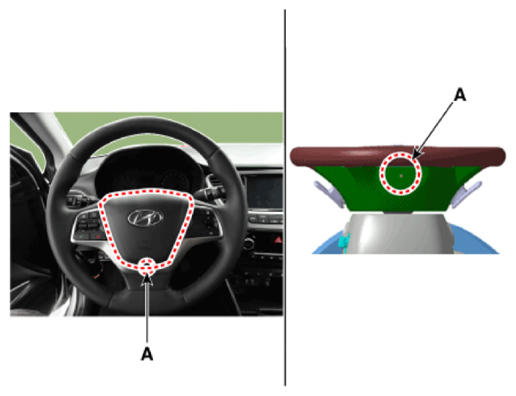

- Put a flat tool (Ø4 mm) into a guide hole located in the bottom of steering wheel and press a spring.CAUTION:
- When putting a tool into a hole, make sure not to damage an airbag cushion by a tool.

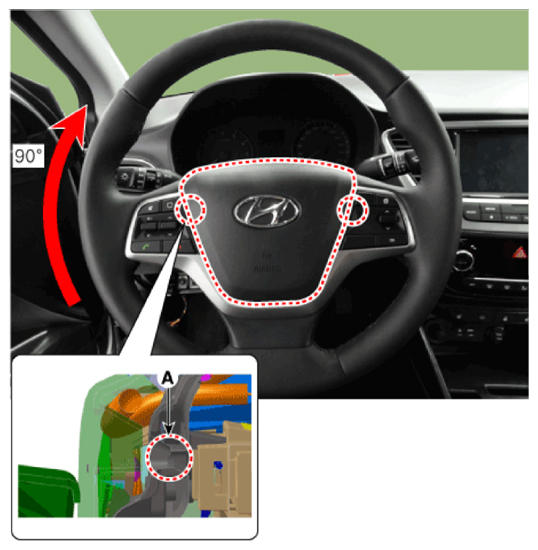

- Turn a steering wheel anti-clockwise, so make a guide hole (A) shown in illustration on the right side.
Put a tool into a hole (A) and bend back a fixed DAB spring.
Make sure to pull DAB cover when bend back the spring.
NOTE:- Pull the DAB cover when disengaging the DAB spring because the DAB does not pop up automatically.

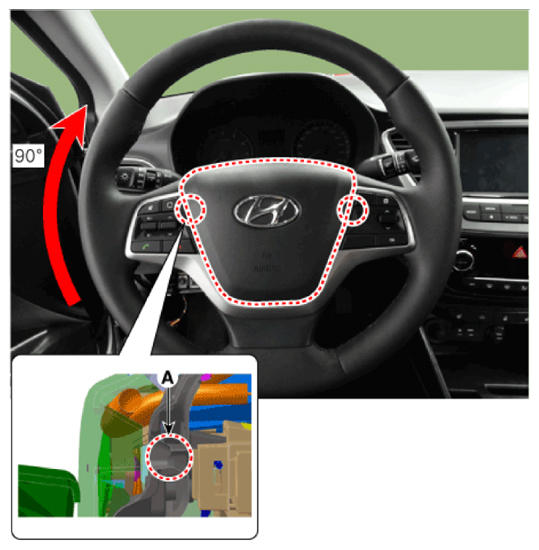

- Turn a steering wheel clockwise. Put a tool into a hole (A) and bend back a fixed DAB spring. Make sure to pull DAB cover.CAUTION:
- Be careful not to put a tool into a wrong hole.

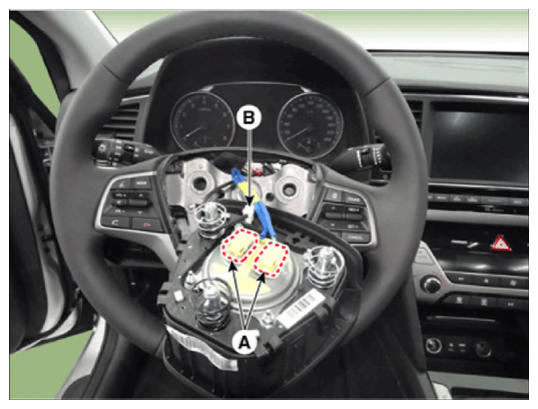

- Release the connector locking pin, then disconnect the driver airbag module connector (A) and horn connector (B).NOTE:
- The removed airbag module should be stored in a clean, dry place with the pad cover facing up.
- Disconnect the clock spring connector.
- Remove the steering wheel by loosening the lock bolt (A).
Tightening torque:
44.1 - 49.0 N.m (4.5 - 5.0 kgf.m, 32.5 - 36.2 lb-ft)
- Install in the reverse order of removal.NOTE:
- Do not reuse the steering lock bolt.

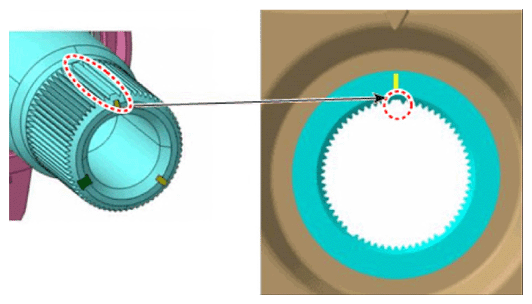

- When assembling, match the gear teeth as shown in illustration below.
