Repair Procedures: Disassembly

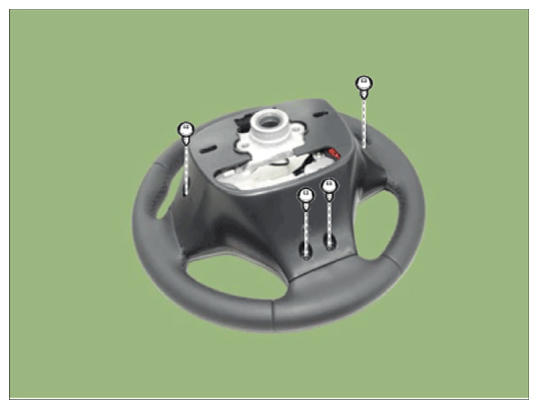

  1. Loosen the screw and then remove the lower cover.
    G14077573Courtesy of HYUNDAI MOTOR AMERICA

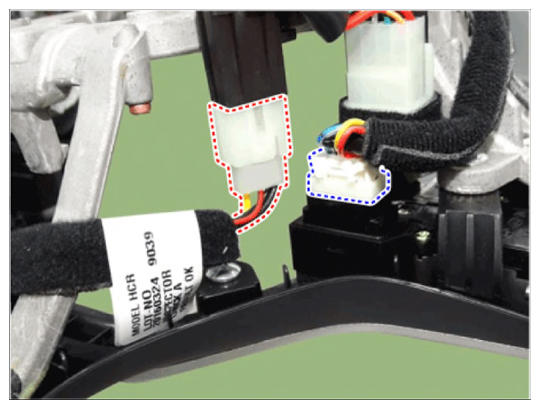

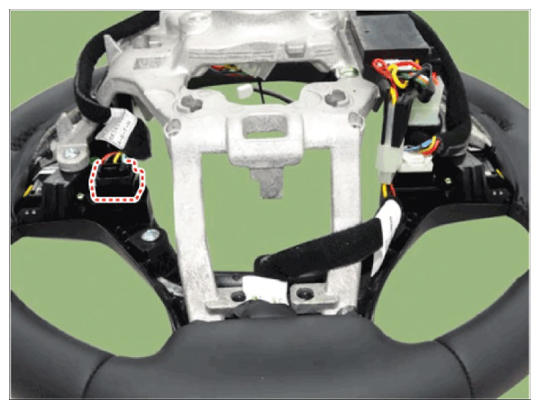

  2. Disconnect the remote control switch connector.
    G14077574Courtesy of HYUNDAI MOTOR AMERICA
    G14077575Courtesy of HYUNDAI MOTOR AMERICA

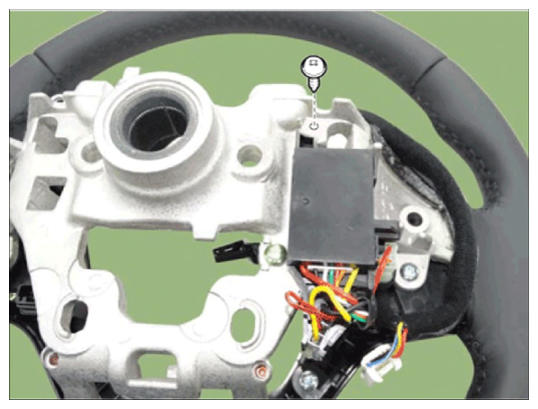

  3. Remove the control box by loosening the screw.
    G14077576Courtesy of HYUNDAI MOTOR AMERICA

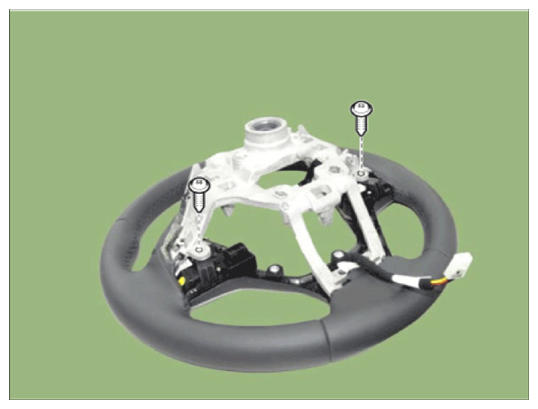

  4. Remove the remote control switch by loosening the screw.
    G14077577Courtesy of HYUNDAI MOTOR AMERICA

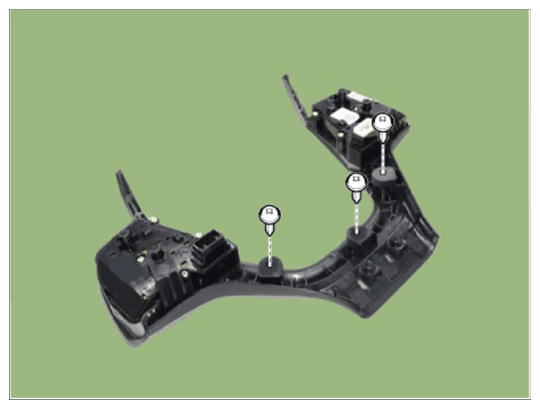

  5. Remove the upper cover by loosening the screw.
    G14077578Courtesy of HYUNDAI MOTOR AMERICA
  6. To reassembly, reverse in the disassembly procedure.
