Repair Procedures: Removal

  1. Remove the ignition key from the vehicle.
  2. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  3. Remove the floor console.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

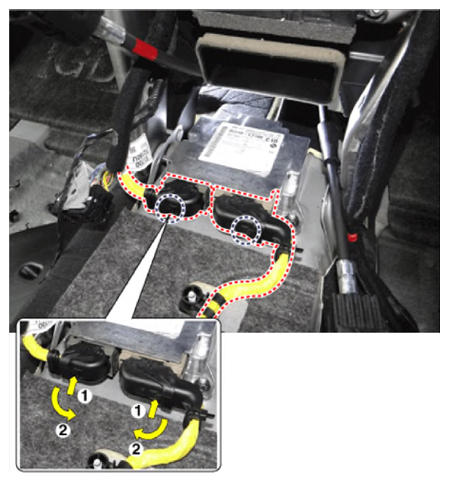

  4. Disconnect the SRSCM connectors.
    G14077704Courtesy of HYUNDAI MOTOR AMERICA

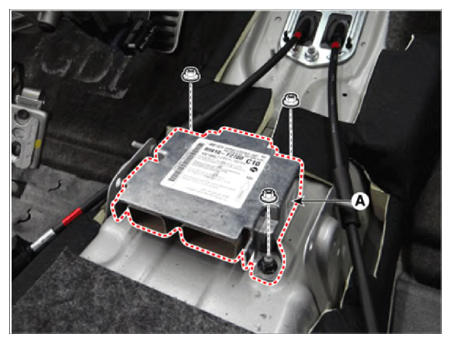

  5. Remove the SRSCM (A) after loosening the mounting nuts.
    G14077705Courtesy of HYUNDAI MOTOR AMERICA
