OCS Ecu

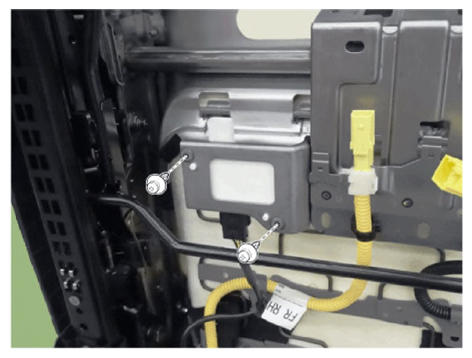

  1. Install the occupant classification system unit on the Front seat track assembly.
    G14077730Courtesy of HYUNDAI MOTOR AMERICA

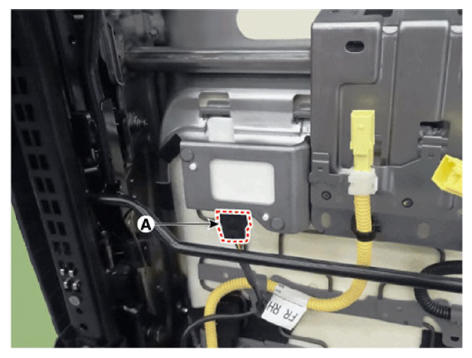

  2. Connect the occupant classification system unit connector.
    G14077731Courtesy of HYUNDAI MOTOR AMERICA
  3. Install the front passenger seat assembly.

    (Refer to Body - "FRONT SEAT ASSEMBLY ")

  4. Reconnect the battery negative cable.
  5. After installing the occupant classification system, confirm proper system operation.
    NOTE:
    • Turn the ignition switch ON the SRS indicator should be turned on for about six seconds and then go off.
    • Telltale lamp will turn on for 4 seconds and be turned off for 3 seconds. After the 7 seconds, it shall remain off if the OCS does not require suppression and the passenger airbag is enabled.
    • Be sure to perform OCS zeroing with GDS after replacing OCS equipped seat cushion.
