Repair Procedures: Removal
- Disconnect the battery negative cable and wait for at least three minutes before beginning work.

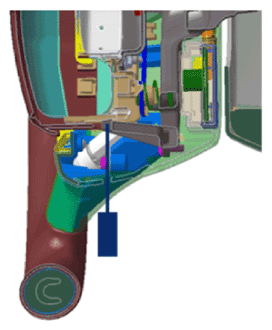

- Put a flat tool (Ø4 mm) into a guide hole located in the bottom of steering wheel and press a spring.CAUTION:
- When put a tool into a hole, make sure not to damage an airbag cushion by a tool.

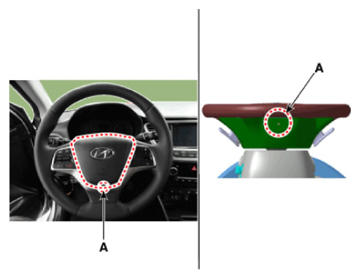

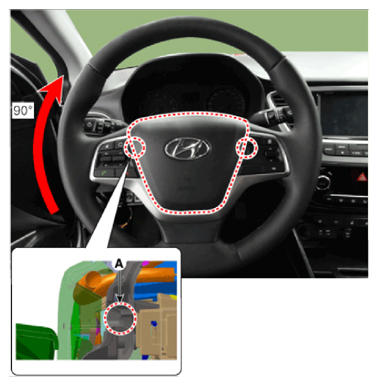

- Turn a steering wheel anti-clockwise, so make a guide hole (A) shown in illustration on the right side.
Put a tool into a hole (A) and bend back a fixed DAB spring.
Make sure to pull DAB cover when bend back the spring.
NOTE:- Pull the DAB cover when disengaging the DAB spring because the DAB does not pop up automatically.
- Turn a steering wheel clockwise. Put a tool into a hole (B) and bend back a fixed DAB spring. Make sure to pull DAB cover whenCAUTION:
- Be careful not to put a tool into a wrong hole.
- Remove the steering wheel.
(Refer to Steering System - "STEERING WHEEL ")
- Remove the steering wheel and steering wheel column shroud
(Refer to Steering System - "MDPS ASSEMBLY ")
- Disconnect the clock spring connector, then remove the clock spring.
