Repair Procedures: Replacement
WARNING: This page is about a different variant/trim than selected.
- Turn OFF ignition switch and disconnect the negative (-) battery cable.
- Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the battery and battery tray.
(Refer to Engine Electrical System - "BATTERY ")
- Remove the engine control module (ECM).
(Refer to Engine Control System - "ENGINE CONTROL MODULE (ECM) ")

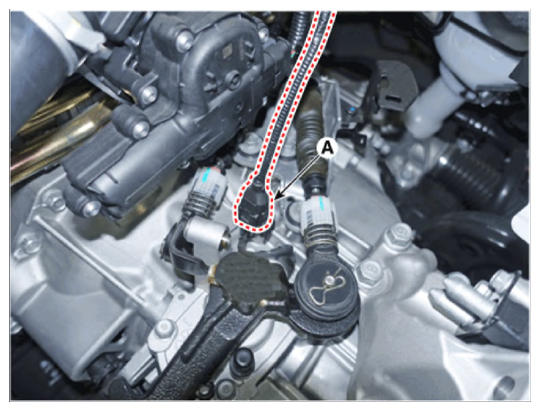

- Disconnect the back-up lamp switch connector (A).

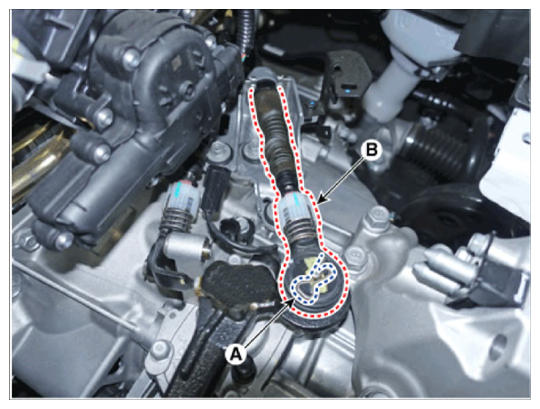

- Remove the snap pin (A) and then separate the shift cable (B).
- Replace a new one and install the back up lamp switch (A).
Tightening torque:
39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)
