Repair Procedures: Removal

  1. Release the residual pressure in fuel line. (Refer to "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
  2. Remove the rear seat. (Refer to Body - "REAR SEAT ASSEMBLY ")

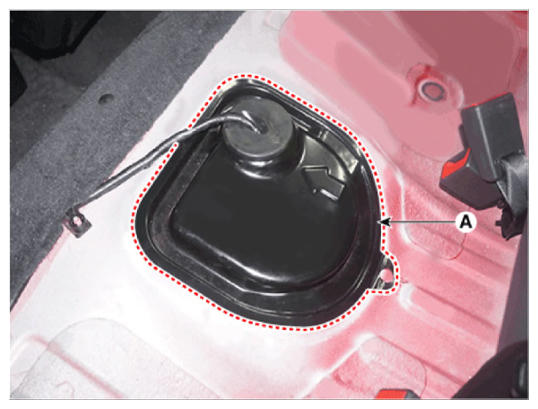

  3. Remove the fuel pump service cover (A).
    G14077043Courtesy of HYUNDAI MOTOR AMERICA

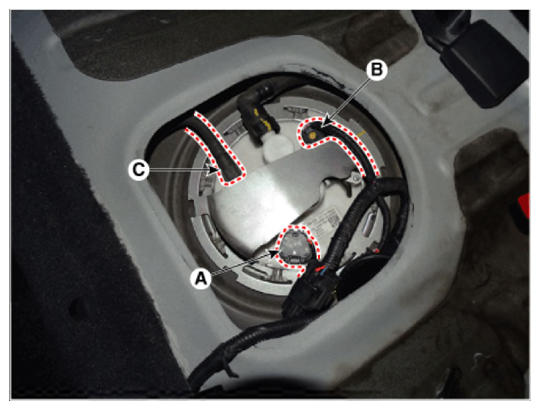

  4. Disconnect the fuel pump connector (A).
  5. Disconnect the fuel tank pressure sensor connector (B).
  6. Disconnect the fuel feed tube quick connector (C).
    G14077044Courtesy of HYUNDAI MOTOR AMERICA
  7. Lift the vehicle.

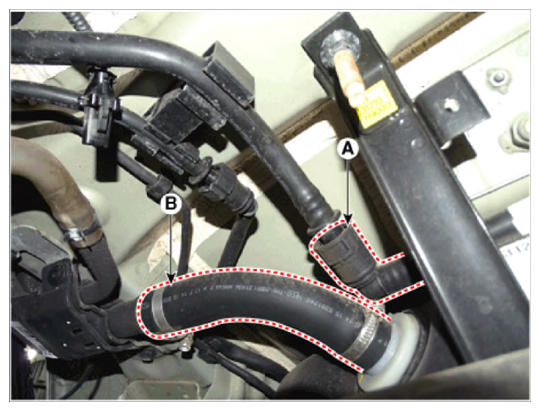

  8. Disconnect the vapor tube quick connector (A).
  9. Disconnect the fuel filler hose (B).
    G14077045Courtesy of HYUNDAI MOTOR AMERICA

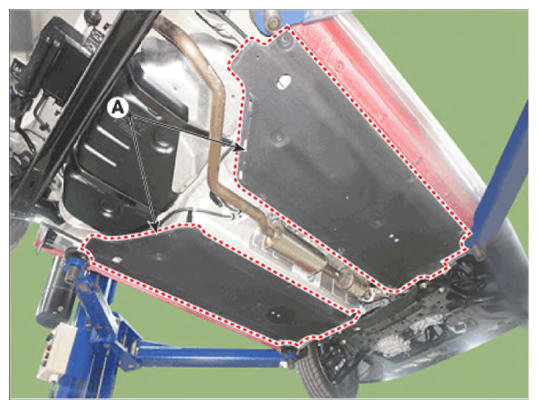

  10. Remove the side under cover (A).
    G14077046Courtesy of HYUNDAI MOTOR AMERICA

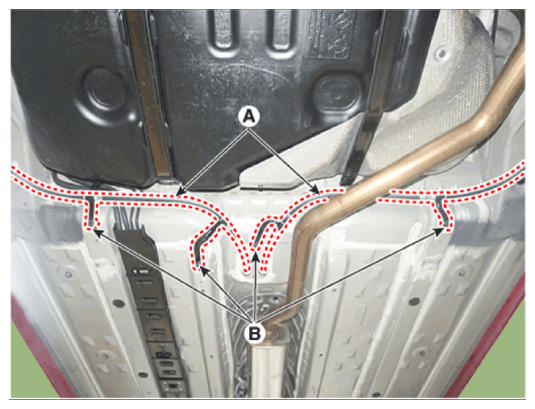

  11. Remove the brake line (A) bracket mounting bolts (B).
    G14077047Courtesy of HYUNDAI MOTOR AMERICA

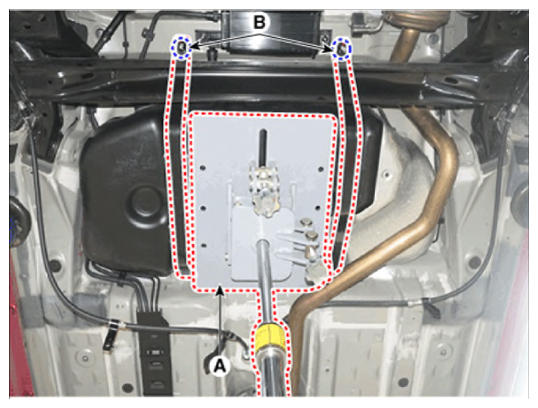

  12. Support the fuel tank with jack (A).
  13. Remove the fuel tank installation nut (B) and then loosen the fuel tank.

    Fuel tank band installation nut:

    39.2 - 54.0 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)

    G14077048Courtesy of HYUNDAI MOTOR AMERICA
