Repair Procedures: Removal

  1. Remove the fuel pump. (Refer to "FUEL PUMP ")

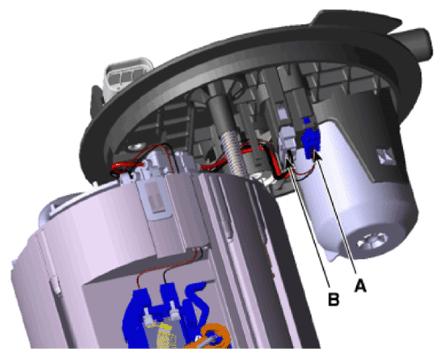

  2. Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).
    G14077061Courtesy of HYUNDAI MOTOR AMERICA

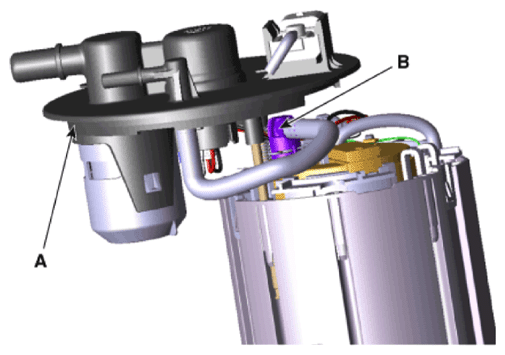

  3. Remove the head assembly (A) after releasing the cushion fixing hooks.
  4. Disconnect the fuel tube quick-connectors (B).
    G14077062Courtesy of HYUNDAI MOTOR AMERICA

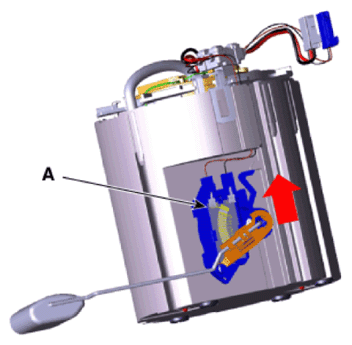

  5. Remove the fuel sender (A) in the direction of an arrow.
    G14077063Courtesy of HYUNDAI MOTOR AMERICA

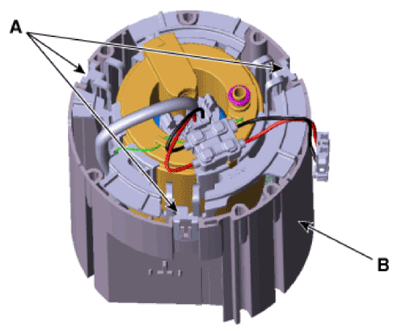

  6. Remove the reservior-cup (B) after releasing the fixing hooks (A).
    G14077064Courtesy of HYUNDAI MOTOR AMERICA

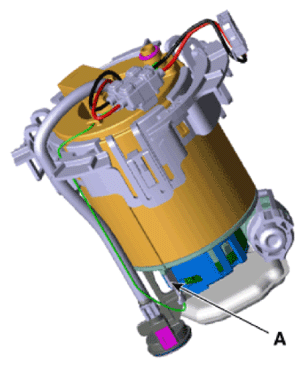

  7. Disconnect the ground (A).
    G14077065Courtesy of HYUNDAI MOTOR AMERICA

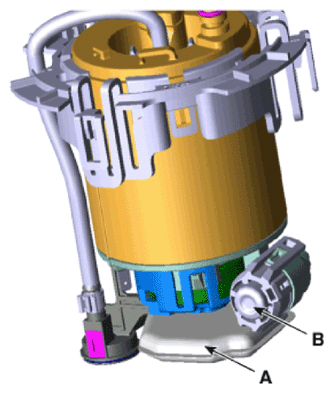

  8. Release the fixing hooks, and then remove the pre-filter (A) and the fuel pressure regulator (B).
    G14077066Courtesy of HYUNDAI MOTOR AMERICA

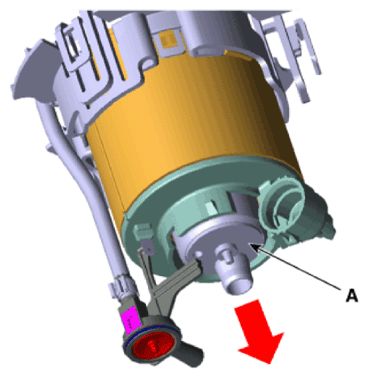

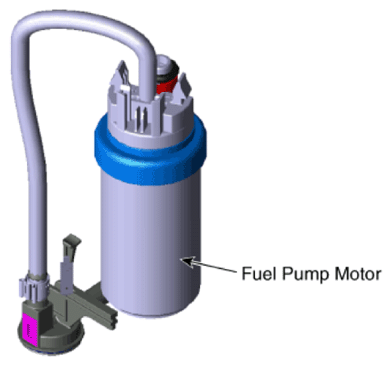

  9. Remove the fuel pump motor (A) in the direction of an arrow.
    G14077067Courtesy of HYUNDAI MOTOR AMERICA
    G14077068Courtesy of HYUNDAI MOTOR AMERICA
