Repair Procedures: Removal

  1. Remove the fuel pump. (Refer to "FUEL PUMP ")

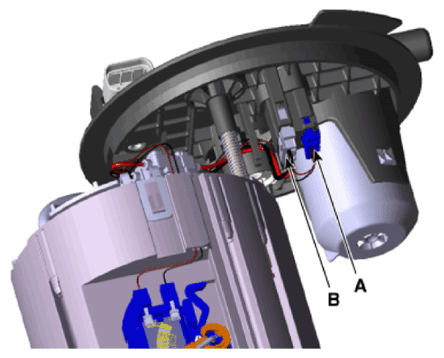

  2. Disconnect the electric pump wiring connector (A) and the fuel sender connector (B).
    G14077072Courtesy of HYUNDAI MOTOR AMERICA

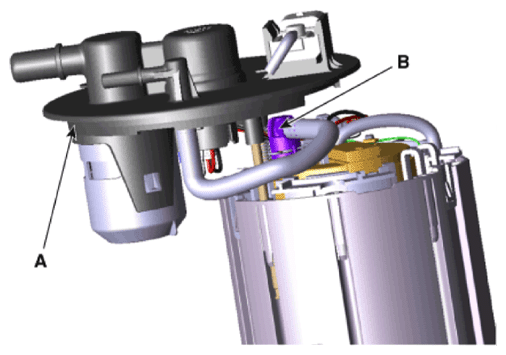

  3. Remove the head assembly (A) after releasing the cushion fixing hooks.
  4. Disconnect the fuel tube quick-connectors (B).
    G14077073Courtesy of HYUNDAI MOTOR AMERICA

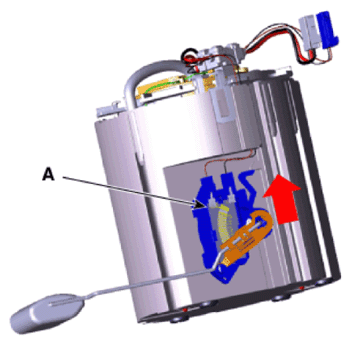

  5. Remove the fuel sender (A) in the direction of an arrow.
    G14077074Courtesy of HYUNDAI MOTOR AMERICA

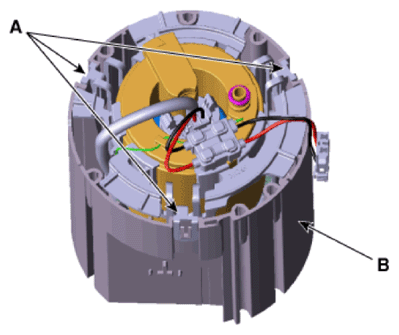

  6. Remove the reservior-cup (B) after releasing the fixing hooks (A).
    G14077075Courtesy of HYUNDAI MOTOR AMERICA

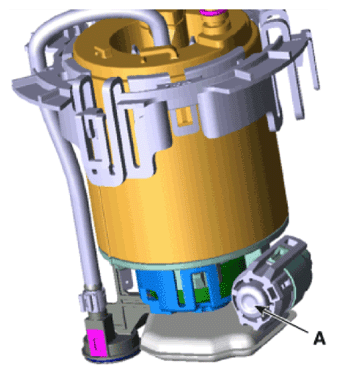

  7. Release the fixing hooks, and then remove the fuel pressure regulator (A).
    G14077076Courtesy of HYUNDAI MOTOR AMERICA

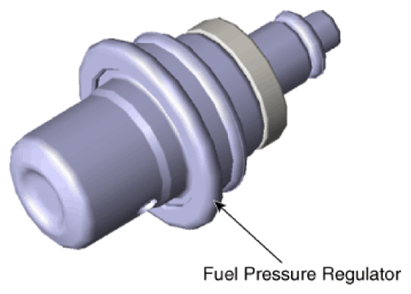

    G14077077Courtesy of HYUNDAI MOTOR AMERICA
