Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the negative (-) battery cable.

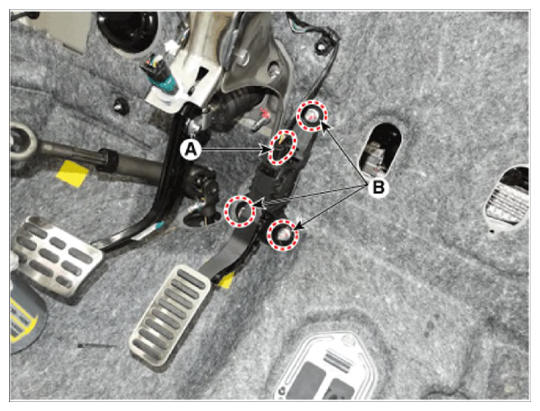

  2. Disconnect the accelerator position sensor connector (A).
  3. Remove the installation nuts (B), and then remove the accelerator pedal module.

    Accelerator pedal module installation nut:

    12.7-15.7 N.m (1.3-1.6 kgf.m, 9.4-11.6 lb-ft)

    G14077086Courtesy of HYUNDAI MOTOR AMERICA
