Components And Components Location: Components

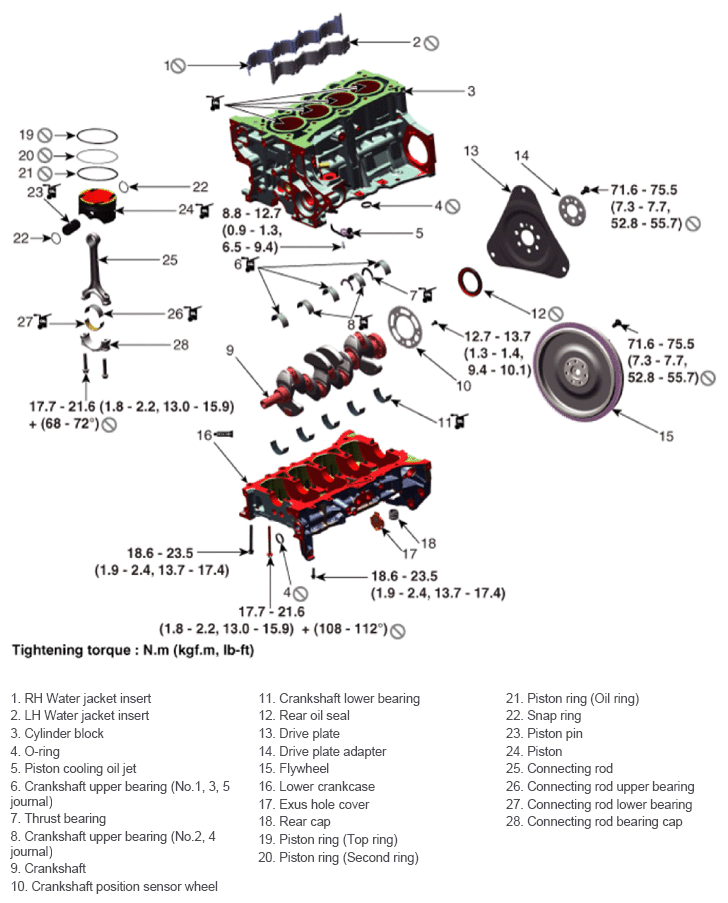

Fig 1: Cylinder Block Components Location With Torque Specifications

G14076418

Courtesy of HYUNDAI MOTOR AMERICA
