Repair Procedures: Installation

1. Before assembling the oil pan, the surface where the sealant is applied to should be free from the hardened sealant, foreign matters, oil, dust, moisture and etc.

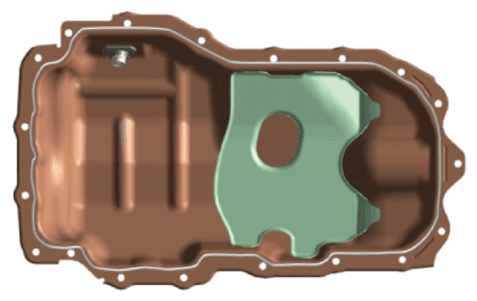

2. After applying liquid sealant on the oil pan, assemble it within 5 minutes.

   Width  : 2.5 - 3.5 mm (0.0984 - 0.1378 in.)

   Specification  : LOCTITE 5900H/THREE BOND 1217H or above.

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

   • When applying sealant gasket, sealant must not be protruded into the inside of oil pan.
   • To prevent leakage of oil, apply sealant gasket to the inner threads of the bolt holes.
   • If the sealant is applied to the bottom surface of the lower crankcase, it should be the same position as the oil pan.

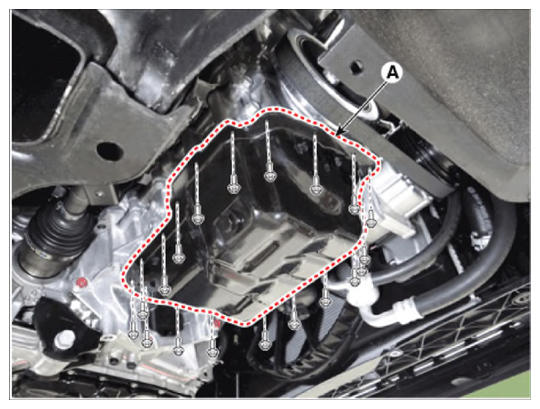

3. Install the oil pan (A) with the bolts.

   Uniformly tighten the bolts in several passes.

   Tightening torque:

   9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

   Courtesy of HYUNDAI MOTOR AMERICA

   NOTE:

   • After assembly, wait at least 30 minutes before filling the engine with oil.

(Refer to "ENGINE OIL ")
