Home >> Hyundai >> 2021 >> Accent SE, Automatic CVT Trans >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Flow Diagram >> Engine Oil Flow Diagram

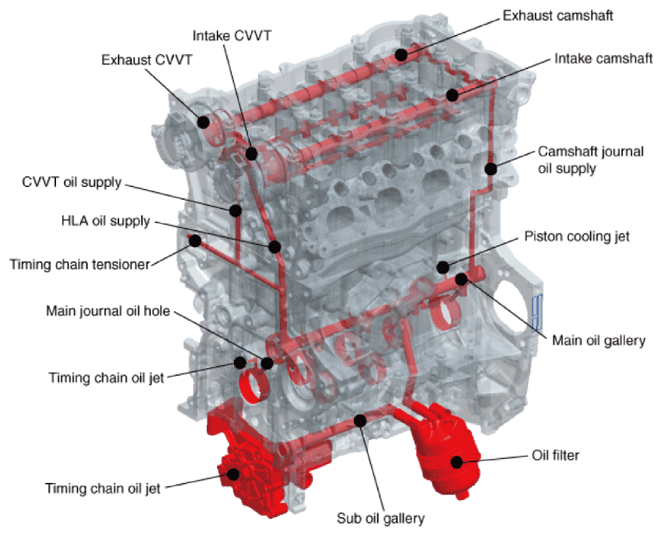

Engine Oil Flow Diagram

G14076559

Courtesy of HYUNDAI MOTOR AMERICA
