Components And Components Location: Components

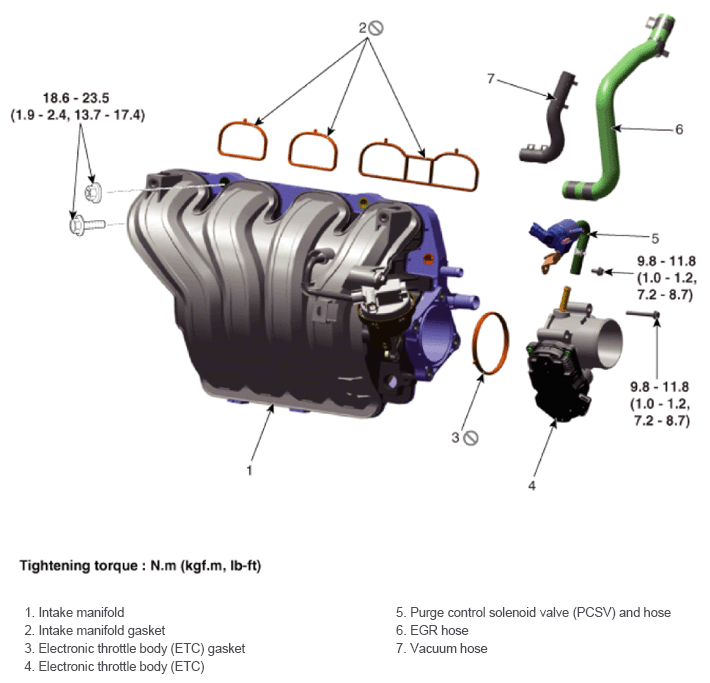

Fig 1: Intake Manifold Components Location With Torque Specifications

G14076597

Courtesy of HYUNDAI MOTOR AMERICA
