Components And Components Location: Components

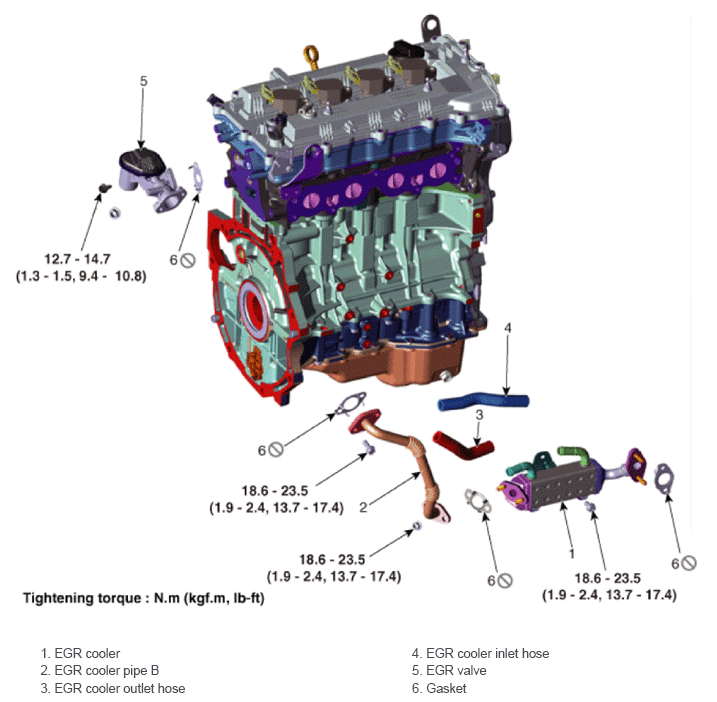

Fig 1: EGR Cooler Components Location With Torque Specifications

G14076615

Courtesy of HYUNDAI MOTOR AMERICA
