Repair Procedures: Inspection: Stator

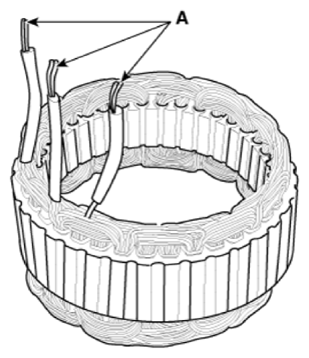

  1. Check that there is continuity between each pair of leads (A).
    G14076696Courtesy of HYUNDAI MOTOR AMERICA
  2. Check that there is no continuity between each lead and the coil core.
  3. If the coil fails either continuity check, replace the alternator.
