Repair Procedures: Inspection: Rotor

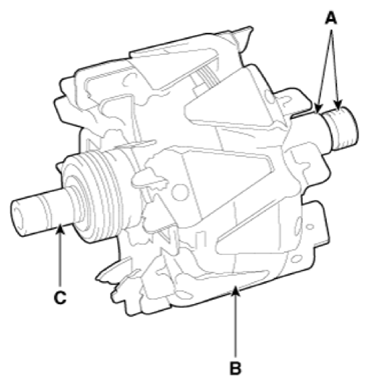

  1. Check that there is continuity between the slip rings (C).
  2. Check that there is no continuity between the slip rings and the rotor (B) or rotor shaft (A).
    G14076695Courtesy of HYUNDAI MOTOR AMERICA
  3. If the rotor fails either continuity check, replace the alternator.
