Home
>>
Hyundai
>>
2021
>>
Accent SE, Automatic CVT Trans
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Anti-Lock Brake System (Abs)
>>

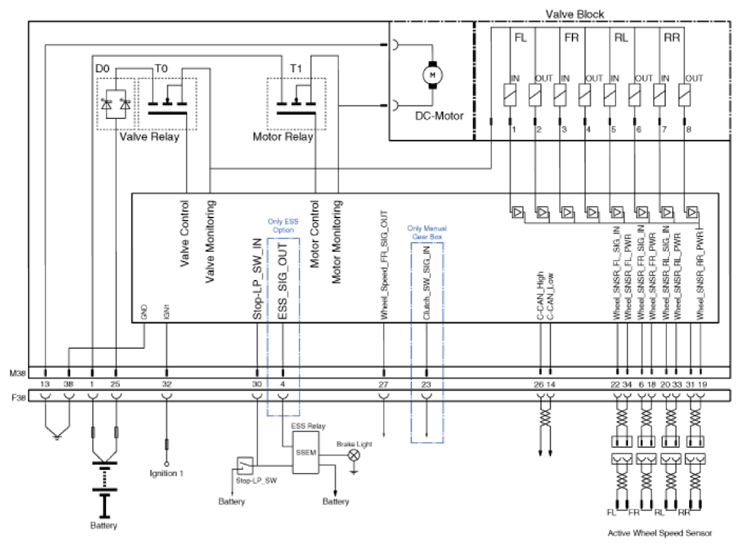

Schematic Diagrams
>>
Notes
Schematic Diagrams: Notes
Courtesy of HYUNDAI MOTOR AMERICA
