Repair Procedures: Removal
CAUTION:
- Put on gloves to protect your hands.
NOTE:
- Use seat covers to avoid damaging any surfaces.
- Remove the roof garnish.
(Refer to Body Side Molding - "ROOF SIDE MOLDING ")
- Remove the rear pillar trim.
(Refer to Interior Trim - "REAR PILLAR TRIM ")
- Spread the WD - 40 on the side of rear window glass.

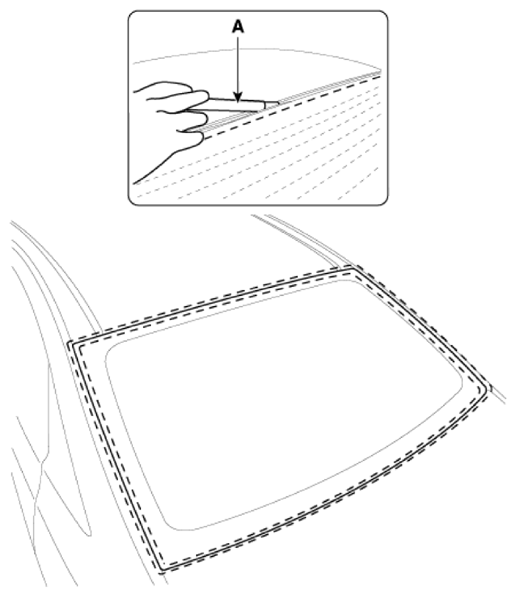

- Cut out the adhesive using the cutter (A).
Information
- Please use the cutter with a blade length between 8 - 12 inches.

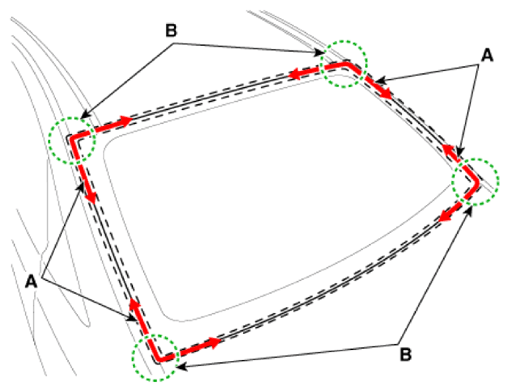

- Cut off the sealant on the edge (B) while pulling the piano wire (A) left and right.CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.

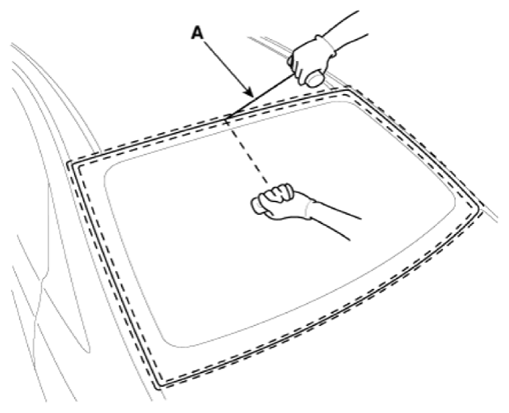

- If a piano wire is visible inside the chassis, pull the piano wire (A) line inside.

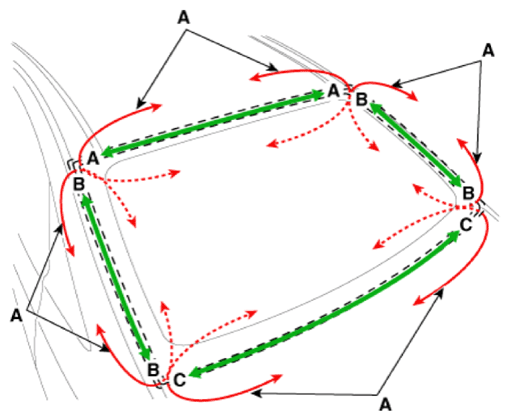

- Cut off the sealant on (A - A), (B - B), (C - C), while pulling a piano wire (A) left and right.CAUTION:
- Put on gloves to protect your hands.
- Heat may occur when working on the wires. Be careful not to burn your hands.
- Be careful not to disconnect the piano wire.

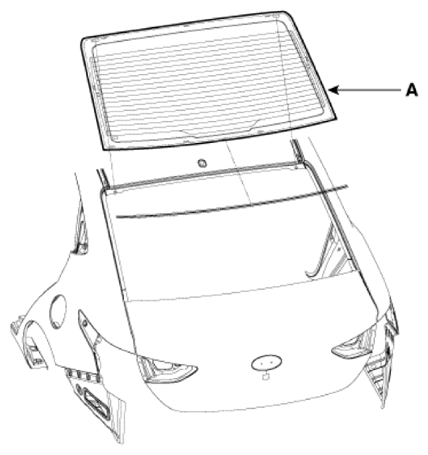

- Remove the rear window glass (A).NOTE:
- When removing and installing the rear window glass, an assistant is necessary.
