Repair Procedures: Replacement
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the rear seat cushion assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
- Remove the rear seat back assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
- Remove the rear door scuff trim.
(Refer to Interior Trim - "DOOR SCUFF TRIM ")
- After loosening the mounting screws, then remove the luggage partition center trim (A).
- Remove the luggage covering mat (B).
- Using a screwdriver or remover, remove the rear transverse trim (C).
- Remove the rear wheel house trim (D).
- After loosening the mounting screws, then remove the luggage side trim (E).
- To install, reverse the removal procedure.

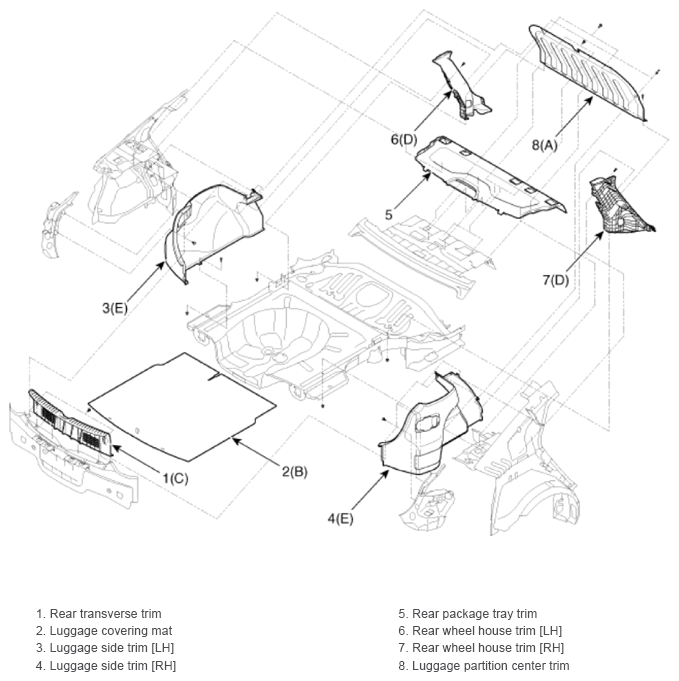

[Bench type]

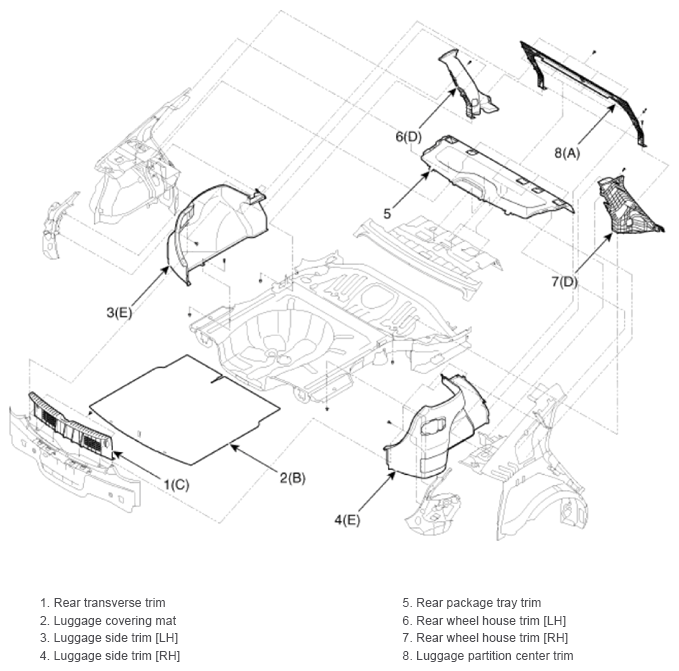

[6:4 Folding type]
