Interior 2 Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the console rear complete assembly.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

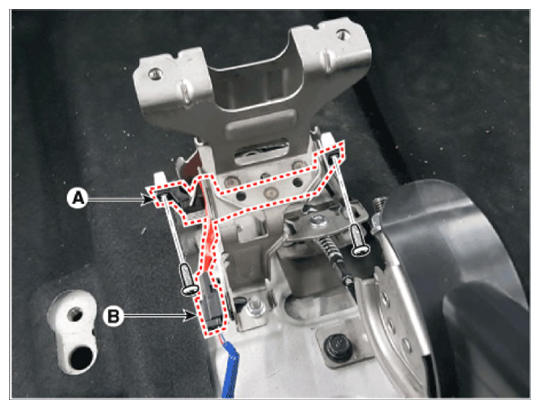

  3. Remove the interior 2 antenna (A) after loosening the mounting screws (2EA) and disconnecting the connector (B).
    G14078623Courtesy of HYUNDAI MOTOR AMERICA
