Interior 1 Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box upper cover.

    (Refer to Body - "GLOVE BOX UPPER COVER ASSEMBLY ")

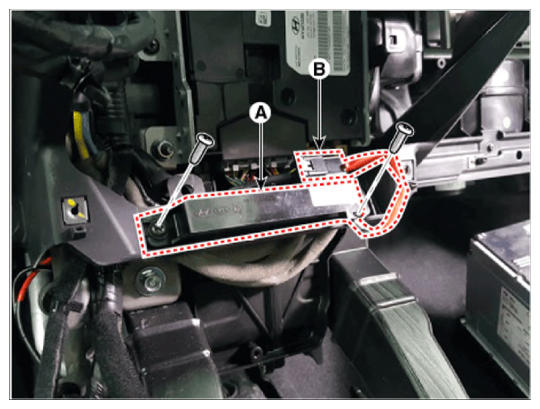

  3. Remove the interior 1 antenna (A) after loosening the mounting screws (2EA) and disconnecting the connector (B).
    G14078622Courtesy of HYUNDAI MOTOR AMERICA
