Door Outside Handle

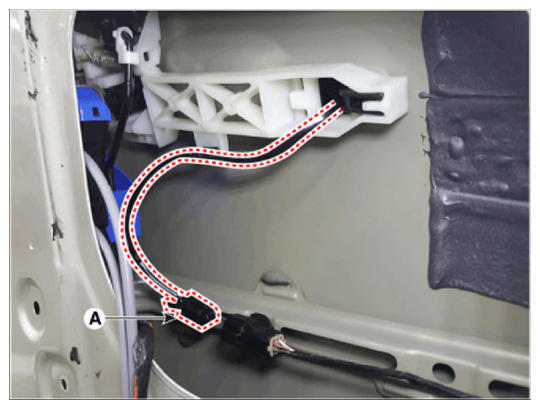

  1. Disconnect the front door outside handle connector (A).
    G14078630Courtesy of HYUNDAI MOTOR AMERICA

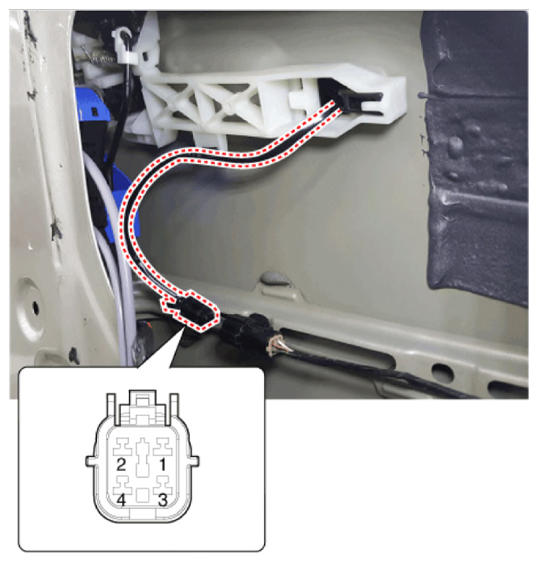

  2. Check for continuity between terminals No 2 and No 4.
G14078631Courtesy of HYUNDAI MOTOR AMERICA
No Description
1 Door antenna 1
2 Door lock/unlock button 1
3 Door antenna 2
4 Door lock/unlock button 2
