Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  3. Disconnect the BCM connectors.

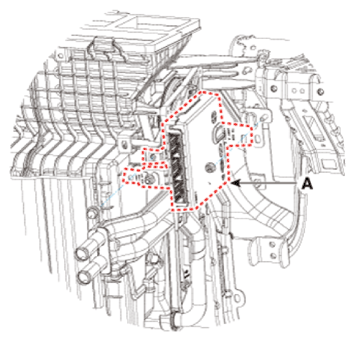

  4. Remove the body control module (A) after loosening the mounting bolt and nut.
    G14078686Courtesy of HYUNDAI MOTOR AMERICA
