Removal and Installation
- Turn ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the engine cover.

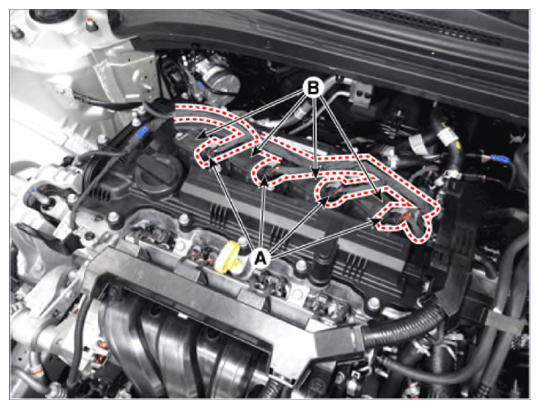

- Disconnect the ignition coil connectors (A).
- Remove the ignition coil after loosening the mounting bolts (B).
Ignition coil mounting bolt:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 Ib-ft)
- Install in the reverse order of removal.NOTE:

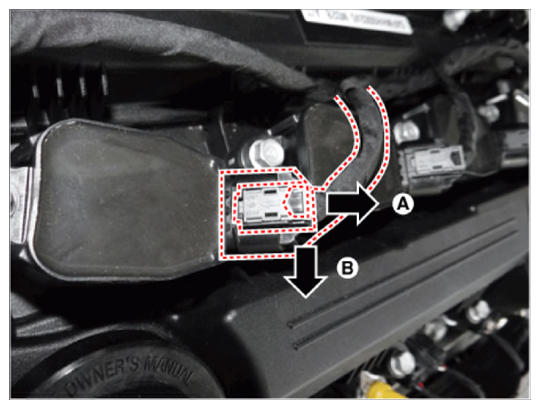

- When removing the ignition coil connector, pull the lock pin (A) and push the clip (B).
